| General | |
|---|---|
| Voltage AC () | 530 |
| Nominal Frequency () | 60 |
| Rated Current @ambient () | 20 |
| Ambient temperature () | 50 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN3043-20-61-C21-R65
SAP Number
823565
Product Family
FN3040
Description

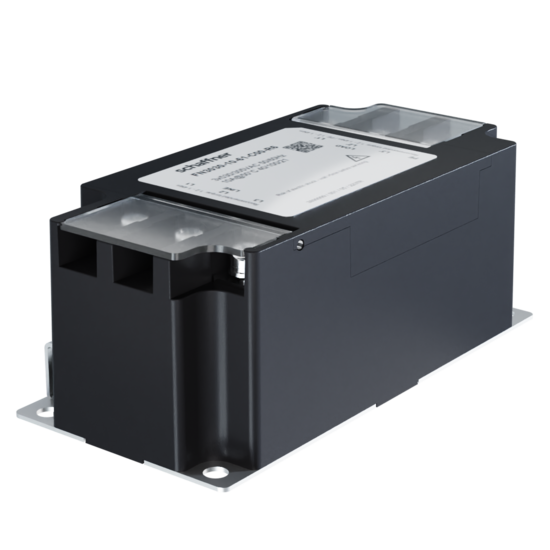

20 A EMC filter with plastic housing and M4 screw terminal and DIN rail mount(Nano crystalline version)
Type
Chassis mount
Phases
3 Phases
| Electric | |
|---|---|
| Input terminal | 61 - M4 screw terminal block |
| Output terminal | 61 - M4 screw terminal block |
| Attenuation |
|---|
| Mechanic | |
|---|---|
| Length () | 128 |
| Width () | 63 |
| Height () | 50 |
| Volume () | 34.354125 |
Schaffner schemes
Mechanical Data Image
| Dimensions |
|---|
