| General | |
|---|---|
| Voltage AC () | 1500 |
| Nominal Frequency () | DC |
| Rated Current @ambient () | 2300 |
| Ambient temperature () | 50 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation

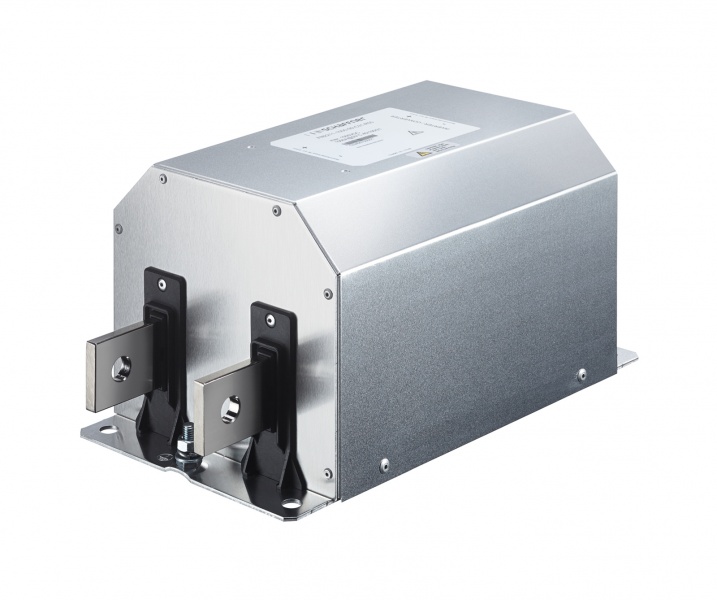

FN2210HV-2300-99-R9
SAP Number
815681
FN2211HV and FN2210HV
Description
2.3 A EMV Filter mit Stromschienen
Type
Chassis mount
Phases
Gleichstrom
| Electric | |
|---|---|
| Input terminal | Bus bar |
| Output terminal | Threaded stud |
| Power Loss () | 64 |
| Attenuation |
|---|
| Mechanic | |
|---|---|
| Length () | 305 |
| Width () | 230 |
| Height () | 165 |
| Volume () | 11575 |
| Weight () | 17600 |
Schaffner schemes
| Dimensions | |
|---|---|
| A (mm) () | 305 |
| B (mm) | 230 |
| C (mm) | 165 |
| D (mm) | 495 |
| E (mm) | 345 |
| F (mm) | 180, 185 |
| G (mm) | Ø 11 |
| H (mm) | 2.5 |
| J (mm) | M10 |
| K (mm) | 351 (+/- 1) |
| L (mm) | 375 |
| P (mm) | 93 (+/- 0.5) |
| S (mm) | 40 |
| T (mm) | 35 |
| U (mm) | 60.5 |
| V (mm) | 70 |
| W (mm) | 15 |
| X (mm) | 20 |
| Y (mm) | 95 |
| Z (mm) | Ø 13.5 |
