| General | |
|---|---|
| Voltage AC () | 530 |
| Nominal Frequency () | 60 |
| Rated Current @ambient () | 10 |
| Ambient temperature () | 50 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation

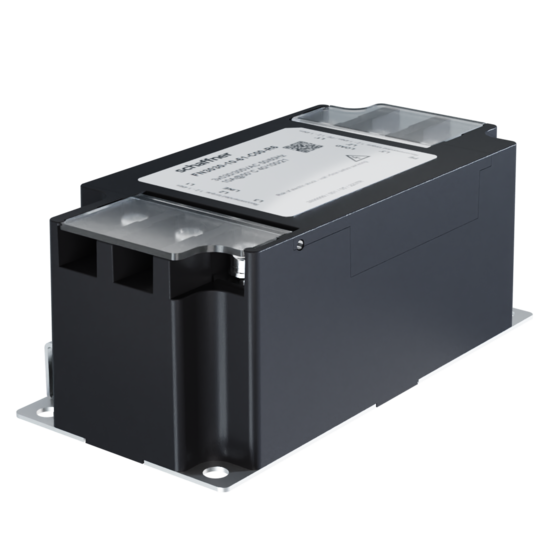

FN3030-10-61-C00-R6
SAP Number
823373
FN3030
Description
10 A EMV-Filter mit geringem Ableitstrom für den japanischen Markt
Type
Chassis mount
Phases
Dreiphasig
| Electric |
|---|
| Attenuation | |
|---|---|
| CM attenuation @ 150kHz () | 40 |
| DM attenuation @ 150kHz () | 47 |
| Mechanic | |
|---|---|
| Length () | 128 |
| Width () | 63 |
| Height () | 50 |
| Volume () | 41.422875 |
| Weight () | 450 |
Schaffner schemes
Mechanical Data Image
| Dimensions |
|---|
