| General | |
|---|---|
| Voltage AC () | 250 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 1 |
| Ambient temperature () | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2030-1-06
SAP Number
802426
Product Family
FN2030
Description

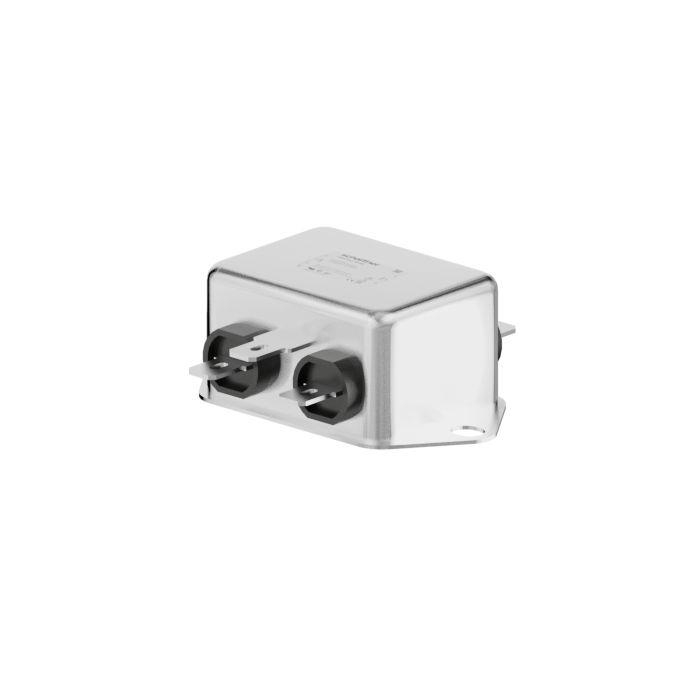

1 A EMC filter with fast-ons
Type
Chassis mount
Application
General
Phases
1 Phase
| Electric | |
|---|---|
| Leakage current IEC60939 () | 0.31 |
| Power Loss () | 0.9 |
| Resistance () | 1000 |
| Attenuation | |
|---|---|
| Inductance L1 () | 20 |
| Capacitance Cx1 () | 0.22 |
| Capacitance Cy1 () | 2.2 |
| CM attenuation @ 150kHz () | 39 |
| DM attenuation @ 150kHz () | 33 |
| Mechanic | |
|---|---|
| Length () | 43.5 |
| Width () | 32.5 |
| Height () | 24.3 |
| Volume () | 34 |
| Weight () | 60 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 64 |
| B (mm) | 35 |
| C (mm) | 24.3 |
| D (mm) | 43.5 |
| E (mm) | 32.5 |
| F (mm) | 54 |
| G (mm) | 21 |
| H (mm) | 9.3 |
| I (mm) | 15.3 |
| J (mm) | 21.8 |
| K (mm) | 5.3 |
| L (mm) | 6.3 |
| M (mm) | 0.7 |
| M (mm) | 6.3 x 0.8 |
| O (mm) | 8.3 |
| P (mm) | 21.8 |
