| General | |
|---|---|
| Voltage AC () | 250 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 30 |
| Ambient temperature () | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2060-30-08
SAP Number
800574
Product Family
FN2060
Description

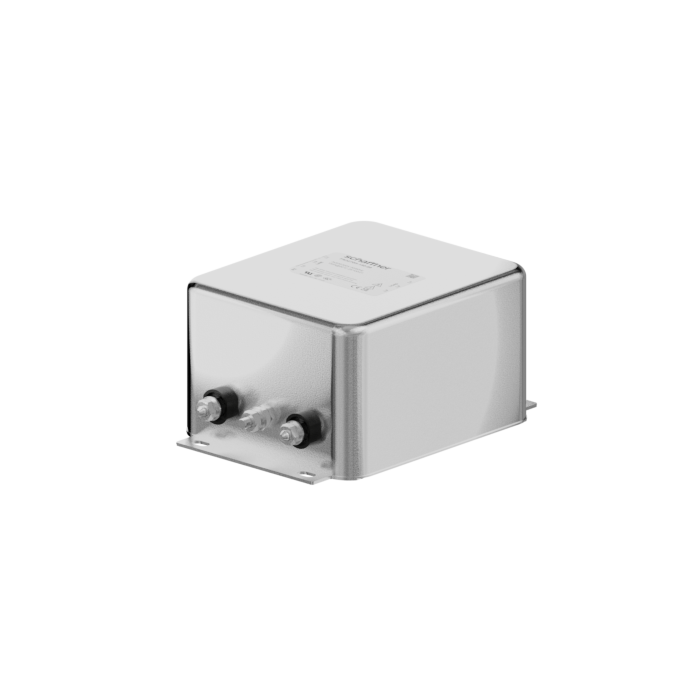

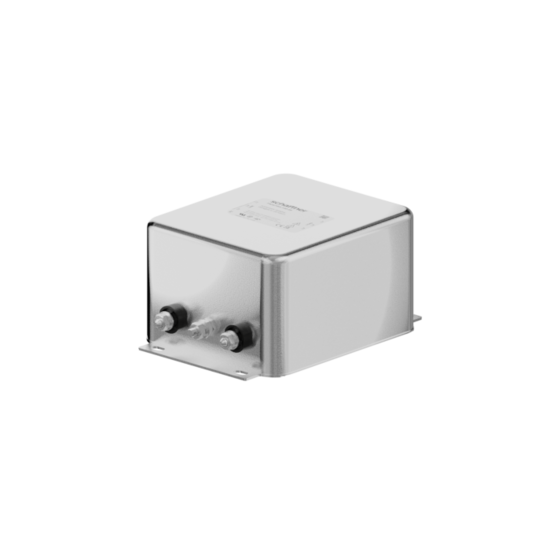

30 A EMC filter with screw terminals
Type
Chassis mount
Application
General
Phases
1 Phase
| Electric | |
|---|---|
| Leakage current IEC60939 () | 1.41 |
| Input terminal | Threaded stud |
| Power Loss () | 9.1 |
| Resistance () | 220 |
| Attenuation | |
|---|---|
| Inductance L1 () | 0.6 |
| Capacitance Cx1 () | 1 |
| Capacitance Cy1 () | 10 |
| CM attenuation @ 150kHz () | 22 |
| DM attenuation @ 150kHz () | 31 |
| Mechanic | |
|---|---|
| Length () | 98.5 |
| Width () | 84.5 |
| Height () | 57.6 |
| Volume () | 479 |
| Weight () | 684 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 119 |
| B (mm) | 85.5 |
| C (mm) | 57.6 |
| D (mm) | 98.5 |
| E (mm) | 84.5 |
| F (mm) | 109 |
| G (mm) | 40 |
| H (mm) | 15.6 |
| J (mm) | 42.25 |
| K (mm) | 4.4 |
| L (mm) | 7.4 |
| M (mm) | 1.2 |
| M (mm) | M4 |
