| General | |
|---|---|
| Voltage AC () | 250 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 16 |
| Ambient temperature () | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation

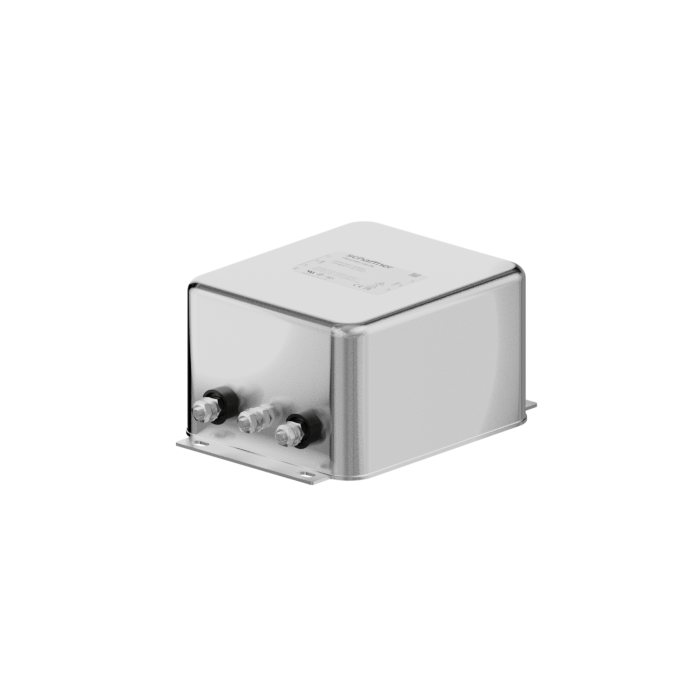

FN2070-16-08
SAP Number
800629
Product Family
FN2070
Description
16 A EMC filter with screw terminals
Type
Chassis mount
Application
General
Phases
1 Phase
| Electric | |
|---|---|
| Leakage current IEC60939 () | 0.66 |
| Input terminal | Threaded stud |
| Power Loss () | 9.6 |
| Resistance () | 220 |
| Attenuation | |
|---|---|
| Inductance L1 () | 2.8 |
| Capacitance Cx1 () | 1 |
| Capacitance Cy1 () | 4.7 |
| CM attenuation @ 150kHz () | 28 |
| DM attenuation @ 150kHz () | 58 |
| Mechanic | |
|---|---|
| Length () | 98.5 |
| Width () | 84.5 |
| Height () | 57.6 |
| Volume () | 479 |
| Weight () | 1000 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 119 |
| B (mm) | 85.5 |
| C (mm) | 57.6 |
| D (mm) | 98.5 |
| E (mm) | 84.5 |
| F (mm) | 109 |
| G (mm) | 40 |
| H (mm) | 15.6 |
| J (mm) | 42.25 |
| K (mm) | 4.4 |
| L (mm) | 7.4 |
| M (mm) | 1.2 |
| M (mm) | M4 |
| O (mm) | 8.6 |
| P (mm) | 42.25 |
