| General | |
|---|---|
| Voltage AC () | 250 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 3 |
| Ambient temperature () | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2070-3-07
SAP Number
800623
Product Family
FN2070
Description

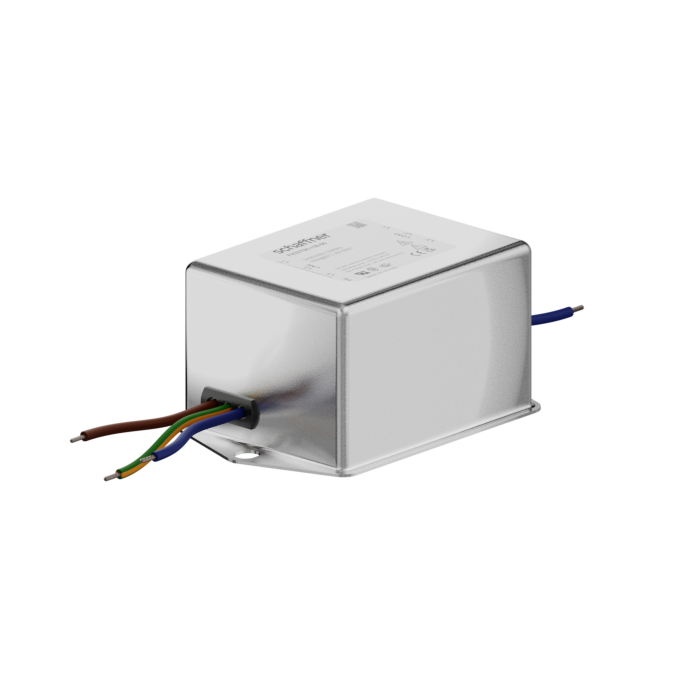

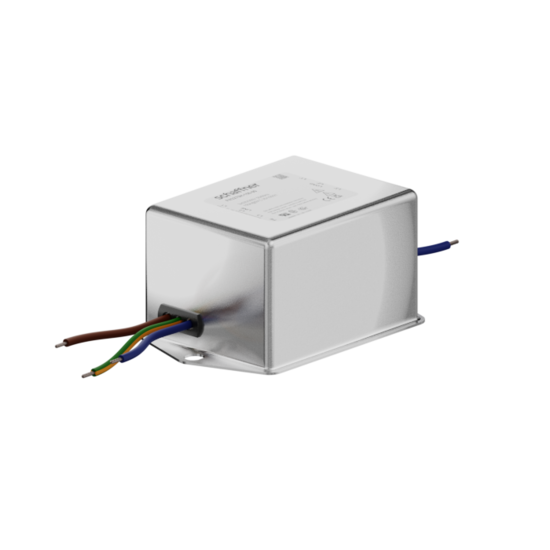

3 A EMC filter with wire leads
Type
Chassis mount
Application
General
Phases
1 Phase
| Electric | |
|---|---|
| Leakage current IEC60939 () | 0.66 |
| Input terminal | Wire Lead |
| Power Loss () | 2.2 |
| Resistance () | 470 |
| Attenuation | |
|---|---|
| Inductance L1 () | 9.8 |
| Capacitance Cx1 () | 0.47 |
| Capacitance Cy1 () | 4.7 |
| CM attenuation @ 150kHz () | 39 |
| DM attenuation @ 150kHz () | 67 |
| Mechanic | |
|---|---|
| Length () | 64.8 |
| Width () | 49.8 |
| Height () | 40.3 |
| Volume () | 130 |
| Weight () | 220 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 85 |
| B (mm) | 54 |
| C (mm) | 40.3 |
| D (mm) | 64.8 |
| E (mm) | 49.8 |
| F (mm) | 75 |
| G (mm) | 27 |
| H (mm) | 12.3 |
| I (mm) | 29.8 |
| J (mm) | 11.4 |
| K (mm) | 5.3 |
| L (mm) | 6.3 |
| M (mm) | 0.7 |
| M (mm) | 6.3 x 0.8 |
| O (mm) | 8.3 |
| P (mm) | 14.9 |
