| General | |
|---|---|
| Voltage AC () | 1200 |
| Nominal Frequency () | DC |
| Rated Current @ambient () | 75 |
| Ambient temperature () | 55 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2200-75-34
SAP Number
803458
Product Family
FN2200
Description
75 A EMC filter with terminal blocks
Type
Chassis mount
Phases
DC
| Electric | |
|---|---|
| Power Loss () | 18 |
| Attenuation | |
|---|---|
| CM attenuation @ 150kHz () | 69 |
| DM attenuation @ 150kHz () | 29 |
| Mechanic | |
|---|---|
| Length () | 170 |
| Width () | 95 |
| Height () | 80 |
| Volume () | 1292 |
| Weight () | 1700 |
Schaffner schemes

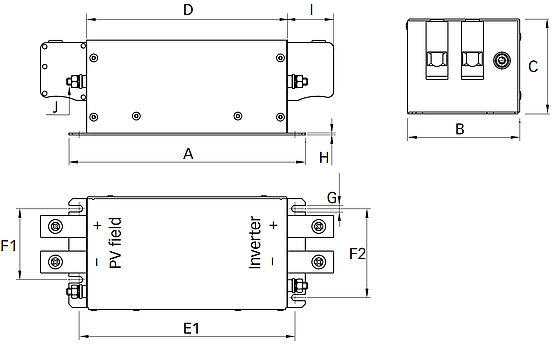

Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 200 |
| B (mm) | 95 |
| C (mm) | 80 |
| D (mm) | 170 |
| E (mm) | 182.5 |
| F (mm) | 60,75 |
| G (mm) | 5.5 |
| H (mm) | 1.5 |
| I (mm) | 39 |
| J (mm) | M6 |
