| General | |
|---|---|
| Voltage AC () | 1200 |
| Nominal Frequency () | DC |
| Rated Current @ambient () | 400 |
| Ambient temperature () | 55 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2200B-400-99
SAP Number
803518
Product Family
FN2200
Description
400 A EMC filter with bus bars
Type
Chassis mount
Phases
DC
| Electric | |
|---|---|
| Input terminal | Bus bar |
| Output terminal | Threaded stud |
| Power Loss () | 16 |
| Attenuation | |
|---|---|
| DM attenuation @ 150kHz () | 19 |
| Mechanic | |
|---|---|
| Length () | 300 |
| Width () | 140 |
| Height () | 110 |
| Volume () | 4620 |
| Weight () | 6100 |
Schaffner schemes

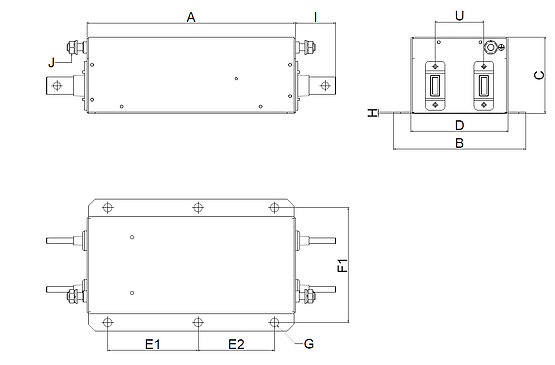

Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 300 |
| B (mm) | 190 |
| C (mm) | 110 |
| D (mm) | 140 |
| E (mm) | 130 , 110 |
| F (mm) | 165 |
| G (mm) | Ø 12 |
| H (mm) | 2 |
| I (mm) | 58 |
| J (mm) | M10 |
| U (mm) | 70 |
| V (mm) | 25 |
| W (mm) | 6 |
| X (mm) | 15 |
| Y (mm) | 58 |
| Z (mm) | Ø 10.5 |
