| General | |
|---|---|
| Voltage AC (V) | 1000 |
| Nominal Frequency (Hz) | DC |
| Rated Current @ambient (A) | 300 |
| Ambient temperature (°C) | 55 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2240-300-99-C2222-R99
SAP Number
822894
Product Family
FN2220, FN2230 and FN2240
Description

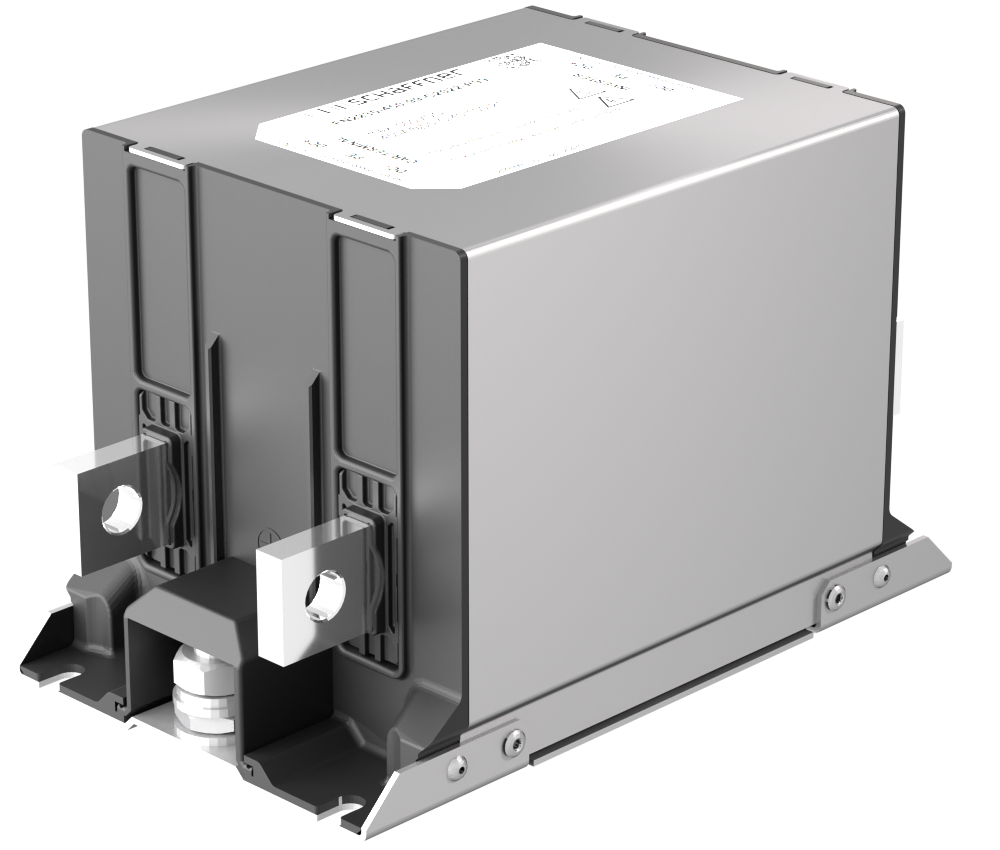

300 A EMC filter with bus bars
Type
Chassis mount
Phases
DC
| Electric | |
|---|---|
| Input terminal | Bus bar |
| Output terminal | Threaded stud |
| Resistance (kΩ) | 10 |
| Attenuation | |
|---|---|
| Capacitance Cy1 (nF) | 330 |
| Capacitance Cy2 (nF) | 330 |
| Mechanic | |
|---|---|
| Length (mm) | 149 |
| Width (mm) | 163 |
| Height (mm) | 95 |
| Volume (cm3) | 2307 |
| Weight (g) | 2850 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) (nF) | 145 |
| B (mm) | 122 |
| C (mm) | 128 |
| D (mm) | 210 |
| E (mm) | 187 |
| F (mm) | 95 |
| G (mm) | 7 |
| L (mm) | 200 |
| P (mm) | 67 |
| U (mm) | 48 |
| V (mm) | 25 |
| W (mm) | 4 |
| X (mm) | 12,5 |
| Z (mm) | 11 |
