| General | |
|---|---|
| Voltage AC () | 300 |
| Voltage DC () | 425 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 50 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8121-50-8M6
SAP Number
823783
Product Family
RT Series N
Description

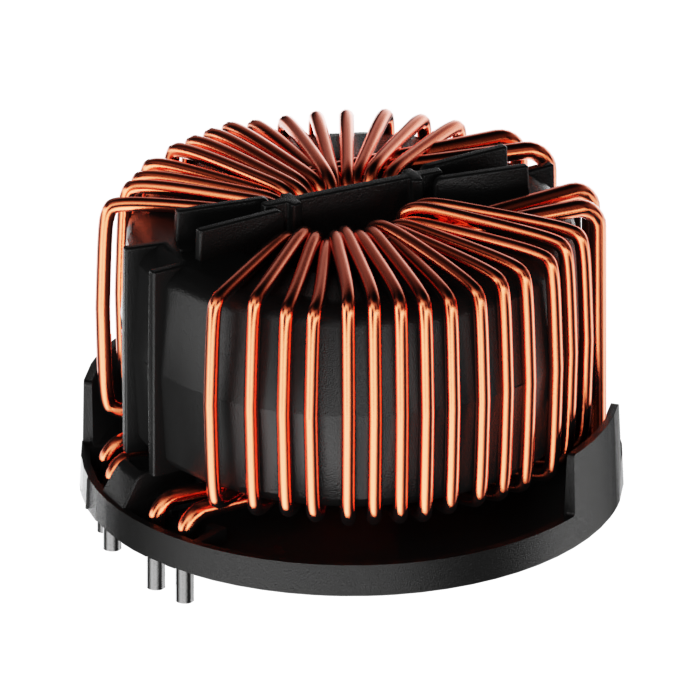

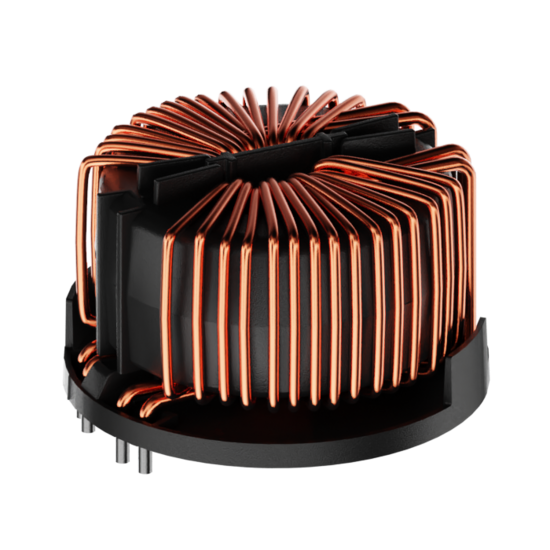

Horizontal 50 A PCB two line Common Mode Choke with 8.6 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
1 Phase
| Electric | |
|---|---|
| Input terminal | PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 8.6 |
| Mechanic | |
|---|---|
| Length () | 66 |
| Width () | 66 |
| Height () | 41 |
| Volume () | 178.596 |
| Frame size | 14 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| D (mm) | 66±0.2 |
| E (mm) | 59.8 ±0.2 |
| F (mm) | 120° ±10° |
| G (mm) | 0.6 ±0.1 g= 220° |
| H (mm) | 41 |
| L (mm) | 5 ±0.5 |
| P (mm) | øР=2.2 ±0.1 |
