| General | |
|---|---|
| Voltage AC () | 600 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 63 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8131-63-2M8
SAP Number
823789
Product Family
RT Series N
Description

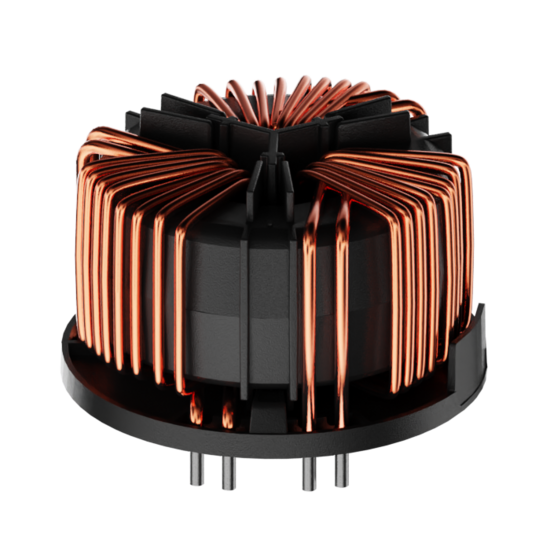

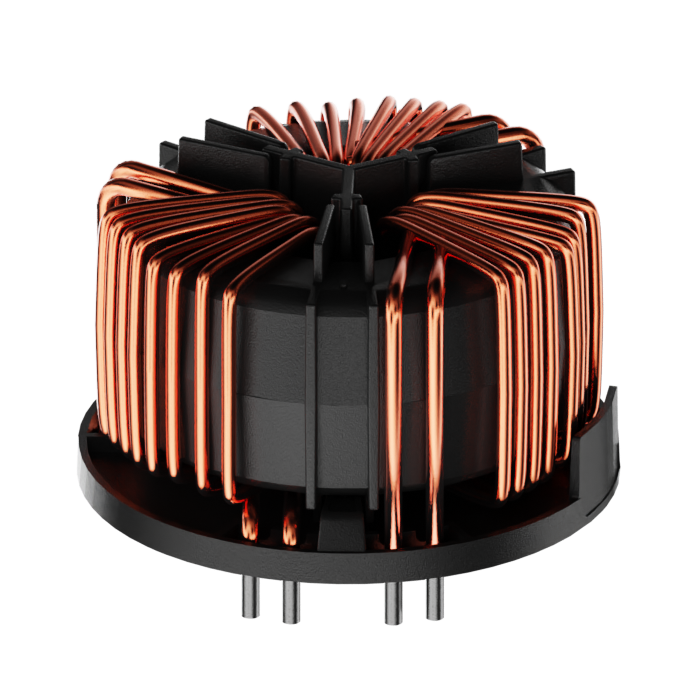

Horizontal 63 A PCB three line Common Mode Choke with 2.8 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
3 Phases
| Electric | |
|---|---|
| Input terminal | PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 2.8 |
| Mechanic | |
|---|---|
| Length () | 66 |
| Width () | 66 |
| Height () | 42 |
| Volume () | 182.952 |
| Frame size | 18 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| D (mm) | 66±0.2 |
| E (mm) | 59.8 ±0.2 |
| F (mm) | 120° ±10° |
| G (mm) | 0.6 ±0.1 g= 220° |
| H (mm) | 42 |
| L (mm) | 5 ±0.5 |
| P (mm) | øР=2.6 ±0.1 |
