| General | |
|---|---|
| Voltage AC () | 600 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 32 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8531-32-10M1
SAP Number
823795
Product Family
RT Series N
Description

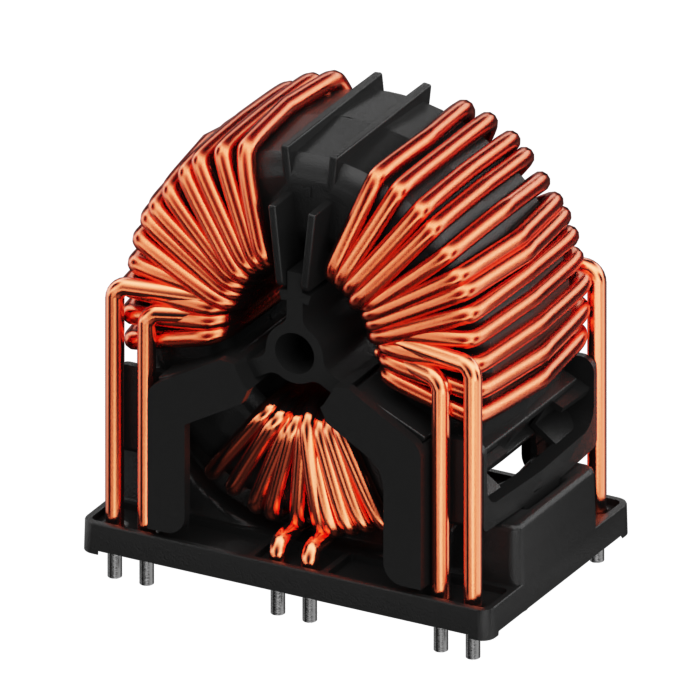

Vertical 32 A PCB three line Common Mode Choke with 10.1 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
3 Phases
| Electric | |
|---|---|
| Input terminal | PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 10.1 |
| Mechanic | |
|---|---|
| Length () | 60 |
| Width () | 38 |
| Height () | 63 |
| Volume () | 143.64 |
| Frame size | 19 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| B (mm) | 38±0.2 |
| C (mm) | 32±0.4 |
| D (mm) | 12±0.2 |
| G (mm) | 0.6 ±0.1 |
| H (mm) | 63 |
| L (mm) | 60±0.2 |
| M (mm) | 4 |
| P (mm) | 52±0.4 øР=2.4 ±0.1 |
| Q (mm) | 46 ±0.4 |
| R (mm) | 5±0.5 |
