| General | |
|---|---|
| Voltage AC () | 600 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 40 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8531-40-6M3
SAP Number
823796
Product Family
RT Series N
Description

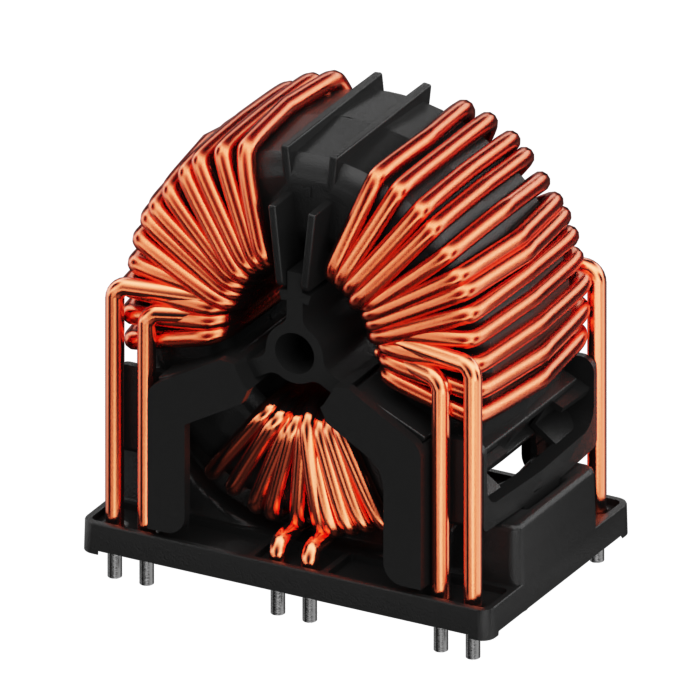

Vertical 40 A PCB three line Common Mode Choke with 6.3 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
3 Phases
| Electric | |
|---|---|
| Input terminal | PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 6.3 |
| Mechanic | |
|---|---|
| Length () | 64 |
| Width () | 42 |
| Height () | 67 |
| Volume () | 180.096 |
| Frame size | 20 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| B (mm) | 42±0.2 |
| C (mm) | 36±0.4 |
| D (mm) | 18±0.2 |
| G (mm) | 0.6 ±0.1 |
| H (mm) | 67 |
| L (mm) | 64±0.2 |
| M (mm) | 4 |
| M (mm) | 5 ±0.4 |
| O (mm) | 51±0.5 |
| P (mm) | 56±0.4 øР=1.9 ±0.1 |
| Q (mm) | 56 ±0.4 |
| R (mm) | 5±0.5 |
| S (mm) | 30.5±0.4 |
| T (mm) | 25.5±0.2 |
