| General | |
|---|---|
| Voltage AC () | 600 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 16 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8532-16-3M0
SAP Number
816977
Product Family
RT series
Description

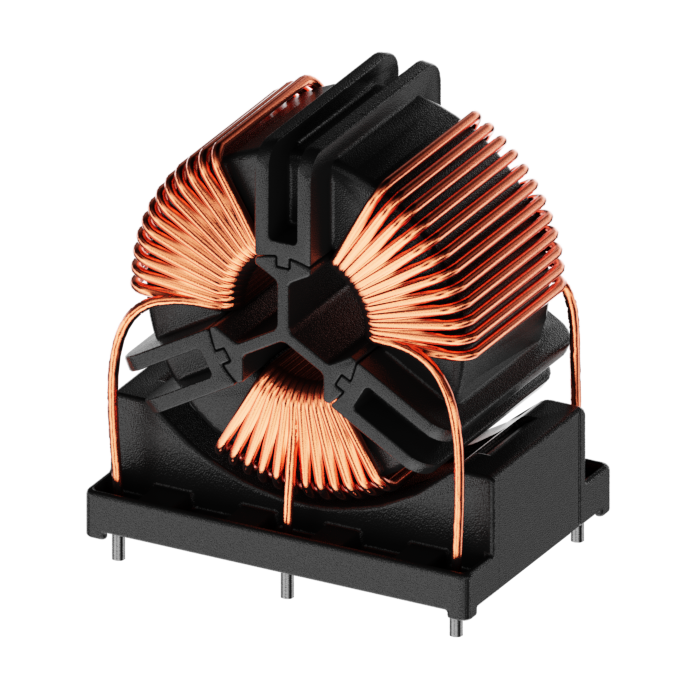

Vertical 16 A PCB three line Common Mode Choke with 3 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
3 Phases
| Electric | |
|---|---|
| Input terminal | PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 3 |
| Mechanic | |
|---|---|
| Length () | 56 |
| Width () | 37 |
| Height () | 60 |
| Volume () | 124.32 |
| Frame size | 11 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | A=46 ± 0.5 A1=23 ± 0.5 |
| B (mm) | 29 ± 0.5 |
| D (mm) | ØD2= 2.2 ØD3=2.2 |
| H (mm) | 60 |
| L (mm) | L= 56 L1= 53 ± 0.5 L2= 34.5 ± 0.5 L3= 11.5 |
| W (mm) | W= 37 W1= 34 ± 0.5 |
| X (mm) | 3.5 |
| Y (mm) | 2.5 |
