| General | |
|---|---|
| Voltage AC (V) | 250 |
| Nominal Frequency (Hz) | 50 |
| Rated Current @ambient (A) | 10 |
| Ambient temperature (°C) | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation

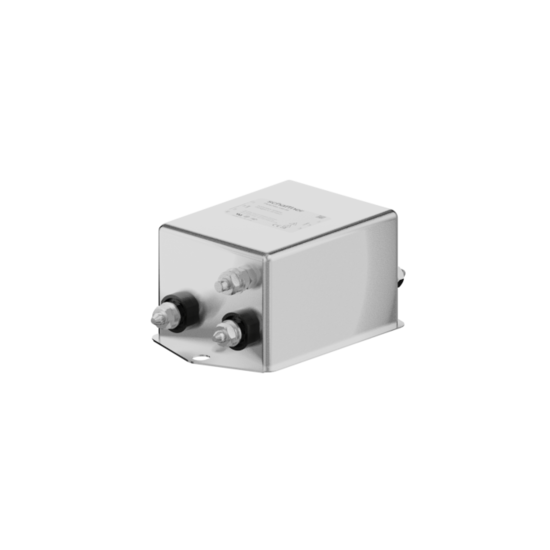

FN2060-10-08
SAP Number
817248
FN2060
Description
10 A EMV Filter mit M4 Schraubanschluss
Type
Chassis mount
Application
Universell
Phases
Einphasig
| Electric | |
|---|---|
| Leakage current IEC60939 (A) | 0.66 |
| Input terminal | Threaded stud |
| Power Loss (W) | 4.3 |
| Resistance (kΩ) | 470 |
| Attenuation | |
|---|---|
| Inductance L1 (mH) | 0.8 |
| Capacitance Cx1 (µF) | 0.47 |
| Capacitance Cy1 (nF) | 4.7 |
| CM attenuation @ 150kHz (dBel) | 18 |
| DM attenuation @ 150kHz (dBel) | 23 |
| Mechanic | |
|---|---|
| Length (mm) | 64.8 |
| Width (mm) | 49.8 |
| Height (mm) | 30.3 |
| Volume (cm3) | 130 |
| Weight (g) | 260 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) (nF) | 85 |
| B (mm) | 54 |
| C (mm) | 30.3 |
| D (mm) | 64.8 |
| E (mm) | 49.8 |
| F (mm) | 75 |
| G (mm) | 27 |
| H (mm) | 12.3 |
| I (mm) | 20.8 |
| J (mm) | 19.9 |
| K (mm) | 5.3 |
| L (mm) | 6.3 |
| M (mm) | 0.7 |
| M (mm) | 6.3 x 0.8 |
| O (mm) | 8.3 |
| P (mm) | 14 |
