| General | |
|---|---|
| Voltage AC () | 277 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 10 |
| Ambient temperature () | 50 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2500-10-103-C13
SAP Number
821766
FN2500
Description

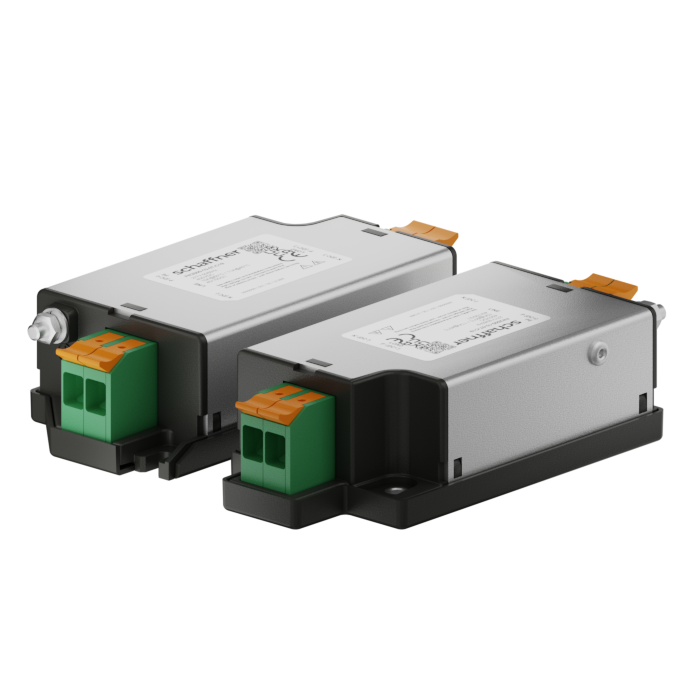

10 A EMV Filter mit Klemmenanschluss
Type
Chassis mount
Phases
Einphasig
| Electric | |
|---|---|
| Leakage current IEC60939 () | 0.87 |
| Power Loss () | 5.4 |
| Resistance () | 680 |
| Attenuation | |
|---|---|
| Inductance L1 () | 8.3 |
| Capacitance Cx1 () | 1 |
| Capacitance Cx2 () | 0.47 |
| Capacitance Cy1 () | 10 |
| CM attenuation @ 150kHz () | 44 |
| DM attenuation @ 150kHz () | 38 |
| Mechanic | |
|---|---|
| Length () | 97.7 |
| Width () | 59 |
| Height () | 35 |
| Volume () | 202 |
| Weight () | 260 |
