| General | |
|---|---|
| Voltage AC () | 520 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 50 |
| Ambient temperature () | 50 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation

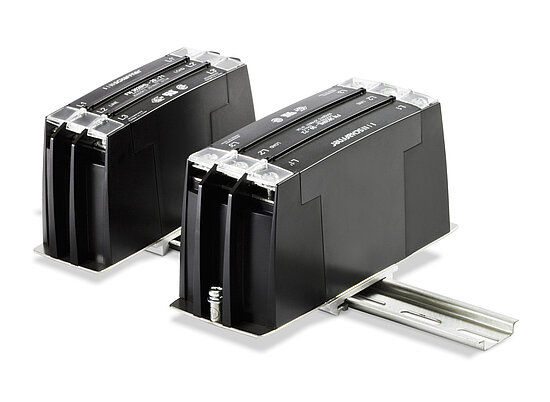

FN3025HL-50-72
SAP Number
802565
FN3025 / FN3026
Description
50 A EMV Filter mit Schraubanschlüssen
Type
Chassis mount
Phases
Dreiphasig
| Electric | |
|---|---|
| Leakage current IEC60939 () | 0.06 |
| Input terminal | Ring terminal |
| Power Loss () | 10.5 |
| Attenuation | |
|---|---|
| CM attenuation @ 150kHz () | 24 |
| DM attenuation @ 150kHz () | 18 |
| Mechanic | |
|---|---|
| Length () | 177 |
| Width () | 65 |
| Height () | 84 |
| Volume () | 966 |
| Weight () | 900 |
Schaffner schemes
| Dimensions | |
|---|---|
| A (mm) () | 177 |
| B (mm) | 65 |
| C (mm) | 84 |
| E (mm) | 162 |
| F (mm) | 44 |
| G (mm) | 5.3 x 6.5 |
| H (mm) | 1.5 |
| J (mm) | M5 |
