| General | |
|---|---|
| Voltage AC () | 300 |
| Voltage DC () | 425 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 6 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8122-6-10M0
SAP Number
816955
RT series
Description

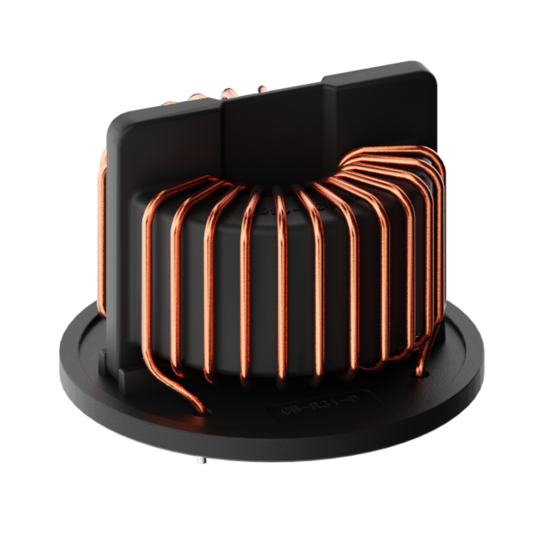

Horizontal 6 A PCB two line Common Mode Choke with 10 mH Inductance
Type
Gleichtaktunterdrückungsdrosseln
Application
Universell
Phases
Einphasig
| Electric | |
|---|---|
| Input terminal | PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 10 |
| Mechanic | |
|---|---|
| Length () | 45 |
| Width () | 45 |
| Height () | 34 |
| Volume () | 68.85 |
| Frame size | 1 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 21 ± 0.5 |
| B (mm) | 25 ± 0.5 |
| D (mm) | ØD = 45 ØD1= 42 ± 0.5 ØD2= 1.5 ØD3= 2.5 |
| H (mm) | 34 |
