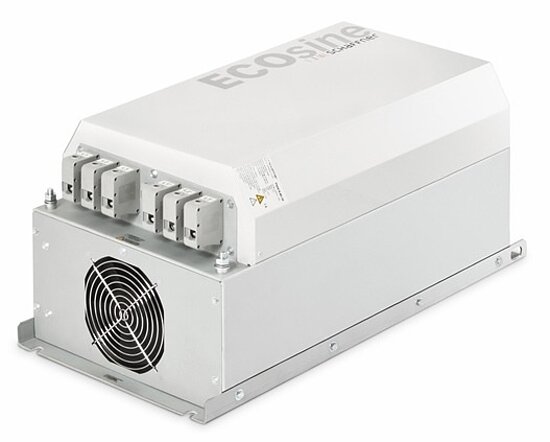

Ecosine Economy FN3418

Ecosine 400-480 VAC 60 Hz Economy Passive Harmonic Filters

FN3418

Ecosine 400-480 VAC 60 Hz Economy Passive Harmonic Filters

  • Economy line of passive harmonic filters for THDi <10%
  • Help to comply with EN 61000-3-12, IEEE-519 and other PQ standards
  • Support an efficient utilization of electrical system capacity
  • Ideal for motor drives with 6-pulse rectifier front-end
  • Suitable for diode and thyristor (SCR) rectifiers applications

Features and Benefits

FN3418 (60 Hz) models of the ECOsine product family represent the very compact economy line with a THID performance of >10% (with Ldc).

They are ideal for non-linear three-phase equipment with B6 rectifier front-end that do not require the industry leading >5% THID performance provided by Schaffner Ecosine Evo series.

The performance is still sufficient to comply with EN 61000-3-12 or with IEEE-519 for Isc/IL <50. Schaffner Ecosine filters help to unburden the electrical infrastructure from excess loading and heat caused by current harmonics, and therefore support a better utilization of electric system capacity.

Lower harmonics also reduce the risk of system resonances and potential downtime of sensitive electronic equipment.

FN3416/18 filters upgrade standard motor drives to low-harmonic drives quickly and easily.

Typical Applications

Three-phase power conversion equipment with front-end six-pulse rectifier (diode or SCR)
Motor drives, like those used e.g. in pump and fan applications
Battery chargers, incl. DC fast chargers for e-cars

Technical Specifications

Nominal operating voltage

3x380 to 480 VAC ±10%

Overload capability

1.6x rated current for 1 minute, once per hour

Operating frequency

60 Hz ±1 Hz

Total harmonic current distortion THDi*

<10% @ rated power (with DC-Link choke)

<15% @ rated power (without DC-Link choke)

Nominal motor drive input power rating

5 to 250 HP

High potential test voltage

P -> E 2500 VAC (2 sec)

Earthing system

TN, TT, IT

Efficiency

>98% @ nominal line voltage and power

Temperature range (operation and storage)

–25°C to +45°C fully operational

+45°C to +70°C derated operation***

–25°C to +70°C transport and storage

Cooling

Internal fan cooling, unregulated

Protection category

IP 20

Flammability corresponding to

UL 94 V-0

Design corresponding to

UL 508, EN 61558-2-20, CE (LVD2006/95/EC)

SCCR**

100 kA

* System requirements: THVD <2%, line voltage unbalance <1% Note: performance specifications in this datasheet refer to six-pulse diode rectifiers. SCR rectifier front-end will produce different results, depending upon the firing angle of the thyristors. ** External UL-rated fuses required. *** Iderated = Inominal*SQRT(70°C-Tamb)/25°C

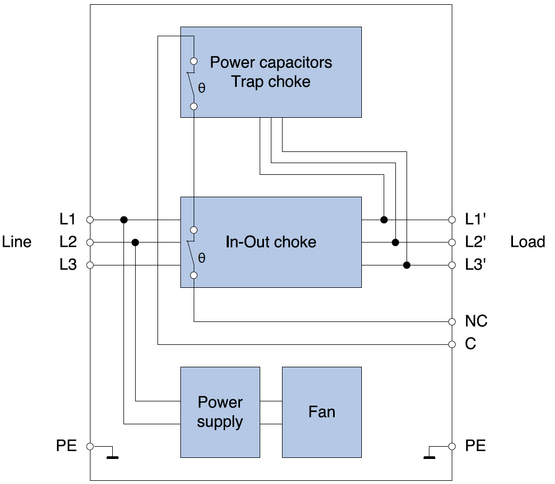

Typical electrical schematic

FN3418
