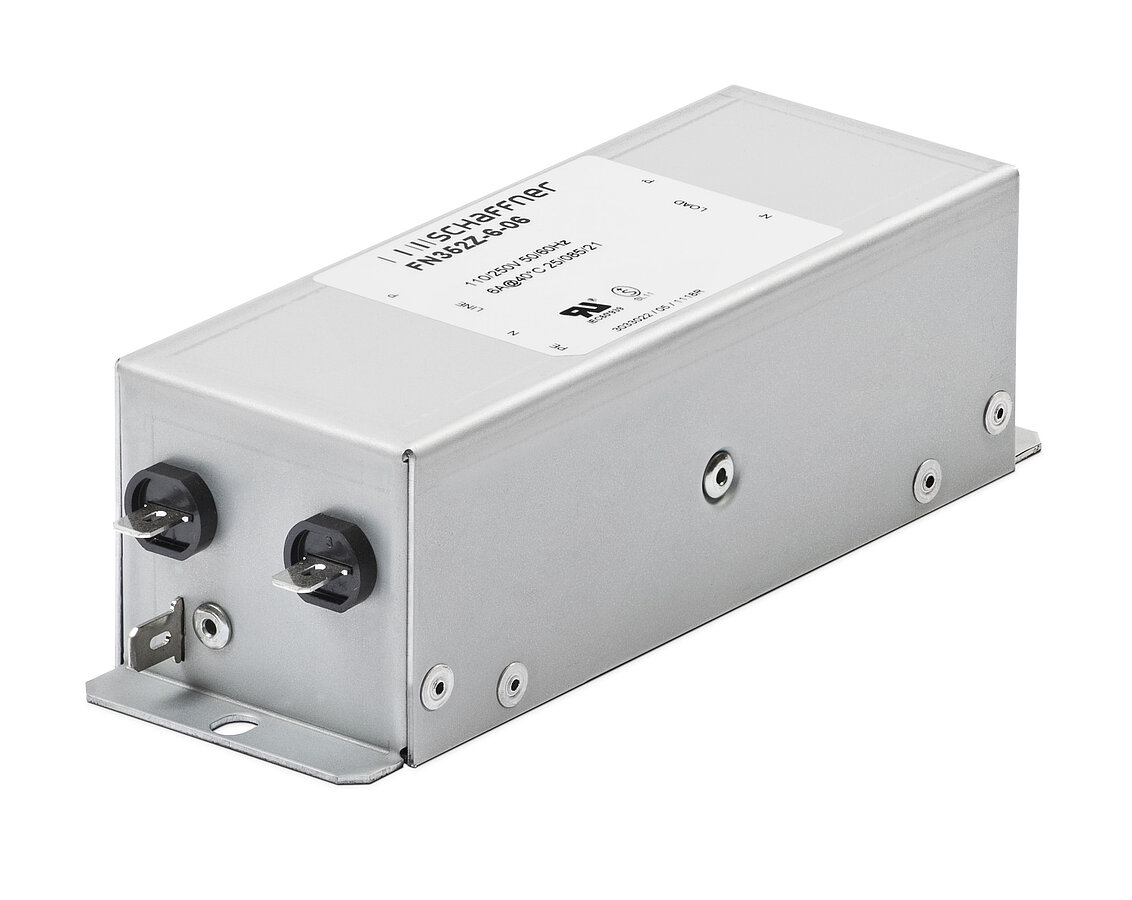

Legacy Products FN352Z

Multi-stage EMC/RFI Filter

FN352Z

Multi-stage EMC/RFI Filter

  • Rated currents from 6 to 10 A
  • Surge pulse protection up to 2 kV
  • Solder or screw connection

Features and Benefits

FN352Z series is developed to meet high filter attenuation requirements by using multi-stage filter design
Additional high surge pulse voltage protection up to 2 kV is integrated to protect sensitive equipment
Choosing FN352Z product line brings you the rapid availability of a standard filter associated with the necessary safety acceptances
Standard filters are a practical solution helping you to pass EMI system approval in a short time
Exceptional conducted attenuation performance, based on multi-stage design and chokes with high saturation resistance and excellent thermal behavior
Various connection options
Custom-specific versions on request

Typical Applications

Facility management
Industrial
Telecommunication
Data processing
Electrical and electronic equipment

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Nominal operating voltage

230 VAC

Rated currents

6 to 10 A @ 40°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec

P –> N 350 VDC for 2 sec

Energy absorption

40J

Surge pulse protection (Z type)

2 kV IEC 61000-4-5

Temperature range (operation and storage)

-25°C to +85°C (25/85/21)

Flammability corresponding to

UL 94 V-0

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF (Mil-HB-217F)

>230,000 h @ 40°C/230 V

Typical electrical schematic

FN352Z

Approvals & Compliances

UL Recognized Label
RoHS Label
CE Label
UKCA Label
