PCB Filters FN410

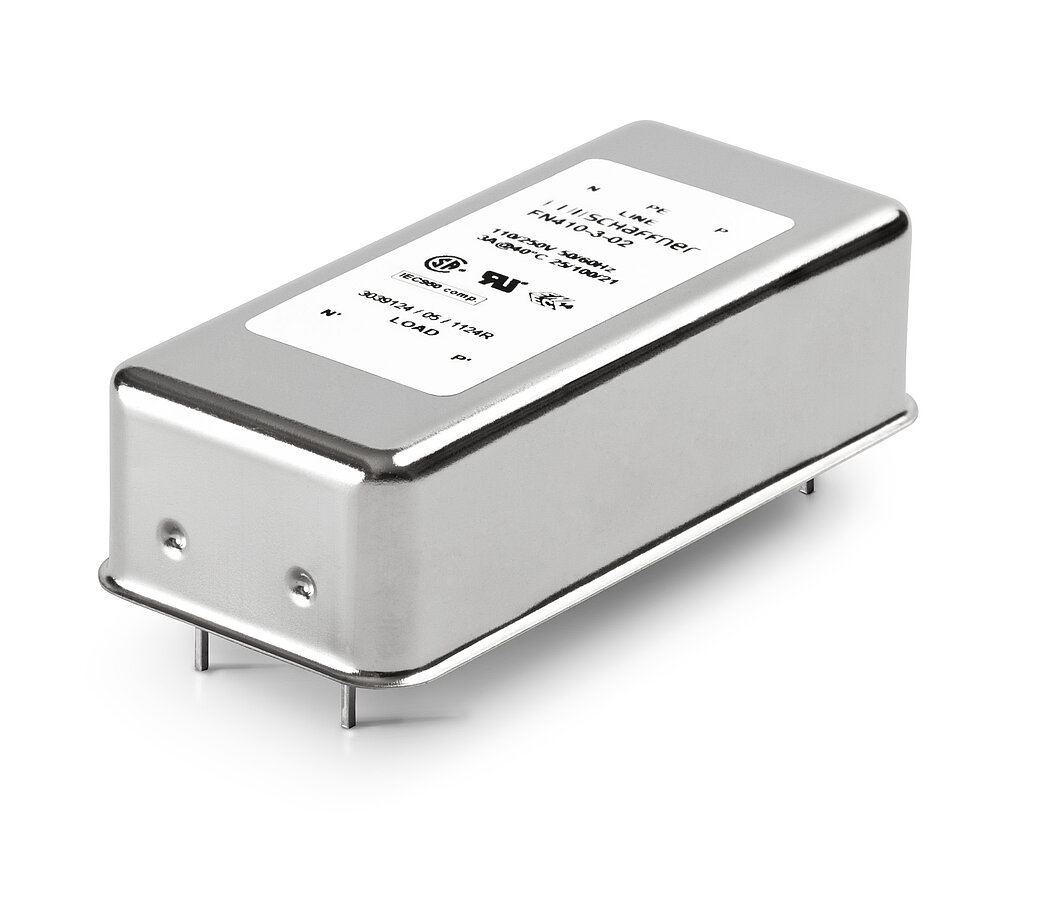

High Performance Two-stage PCB-mounting EMC Filter

FN410

High Performance Two-stage PCB-mounting EMC Filter

  • Rated currents from 0.5 to 6 A
  • High attenuation two-stage design
  • PCB-mountable design

Features and Benefits

Very good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
Two-stage single-phase design
PCB through hole mounting
Custom specific versions on request

Typical Applications

Electrical and electronic equipment
Small to medium-sized machines and household equipment
Single-phase power supplies, switch-mode power supplies
Test and measurement equipment

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Nominal operating voltage

230 VAC

Rated currents

0.5 to 6 A @ 40°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec

P –> N 760 VAC for 2 sec

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)

Flammability corresponding to

UL 94 V-0

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF (Mil-HB-217F)

>675,000 h @ 40°C/230 V

Typical electrical schematic

FN410

Approvals & Compliances

UL Recognized Label
CSA Label
ENEC 14 Label
RoHS Label
