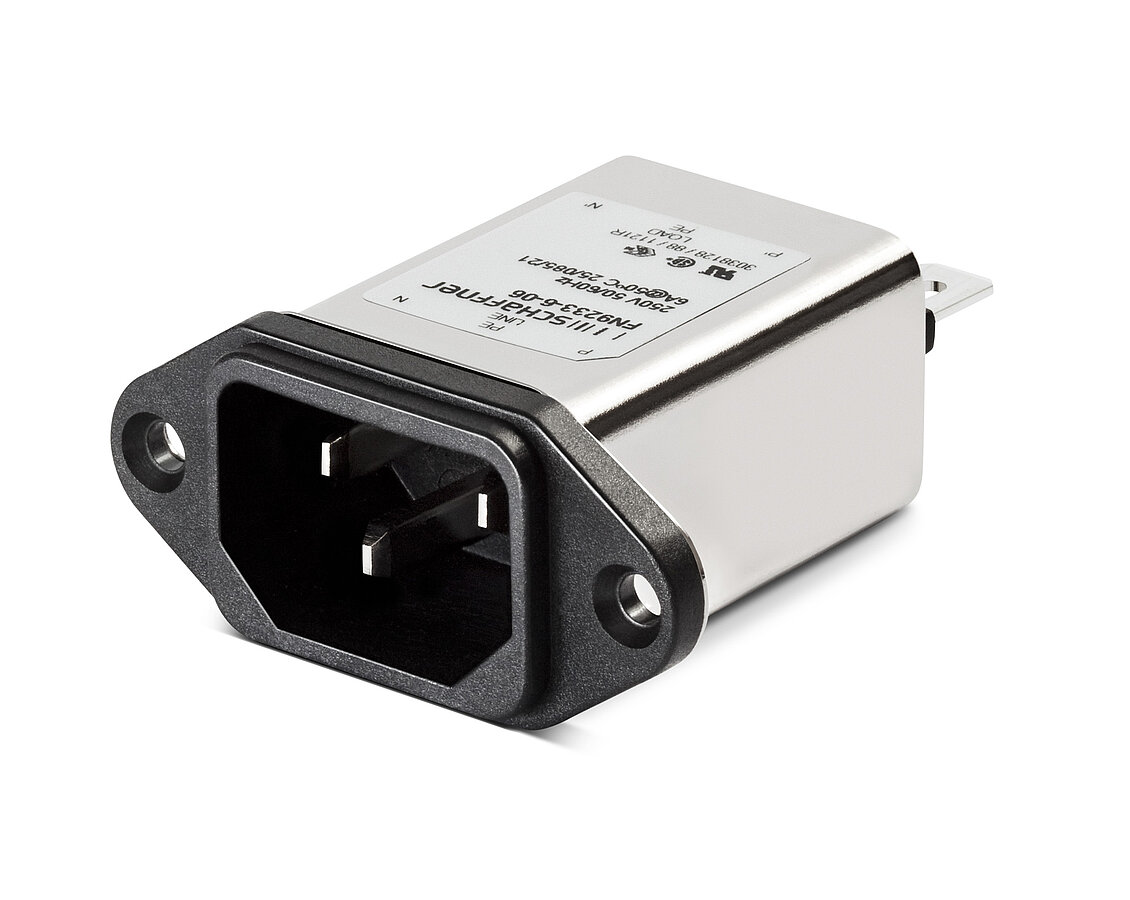

IEC Inlet Filters FN9233

High Performance EMC/RFI Filter

FN9233

High Performance EMC/RFI Filter

  • Rated currents up to 15 A
  • Excellent attenuation performance
  • Complies with IEC/EN 60601-1
  • Snap-in versions (S and S1 type)
  • Hot inlet versions (HI type)

Articles

Article Rated Current @ambient Leakage current IEC60939 Inductance Capacitance Resistance Distribution stock Compare Read More
L1 L2 Cx1 (µF) Cx2 (µF) Cy1 (nF)
FN9233S1-6-06 FN9233S1-6-06 60.311.60.12.2
FN9233R-15-06 FN9233R-15-06 150.310.20.12.21000
FN9233R-12-06HI FN9233R-12-06HI 120.310.270.12.21000
FN9233R-15-06HI FN9233R-15-06HI 150.310.20.12.21000
FN9233S-1-06 FN9233S-1-06 10.3122.50.12.2
FN9233S-3-06 FN9233S-3-06 30.314.60.12.2
FN9233S-6-06 FN9233S-6-06 60.311.60.12.2
FN9233S-8-06 FN9233S-8-06 80.310.90.12.2
FN9233S-10-06 FN9233S-10-06 100.310.450.12.2
FN9233S-12-06 FN9233S-12-06 100.310.270.12.2
FN9233S-15-06 FN9233S-15-06 100.310.20.12.2
FN9233S1-1-06 FN9233S1-1-06 10.3122.50.12.2
FN9233S1-3-06 FN9233S1-3-06 30.314.60.12.2
FN9233R-12-06 FN9233R-12-06 120.310.270.12.21000
FN9233S1-8-06 FN9233S1-8-06 80.310.90.12.2
FN9233S1-10-06 FN9233S1-10-06 100.310.450.12.2
FN9233S1-12-06 FN9233S1-12-06 100.310.270.12.2
FN9233S1-15-06 FN9233S1-15-06 150.310.20.12.2
FN9233SB-1-06 FN9233SB-1-06 1022.50.11000
FN9233SB-3-06 FN9233SB-3-06 304.60.11000
FN9233SB-6-06 FN9233SB-6-06 601.60.11000
FN9233SB-8-06 FN9233SB-8-06 800.90.11000
FN9233SB-10-06 FN9233SB-10-06 1000.450.11000
FN9233SB-12-06 FN9233SB-12-06 1200.270.11000
FN9233SB-15-06 FN9233SB-15-06 1500.20.11000
FN9233B-6-06 FN9233B-6-06 601.60.11000
FN9233S1R-12-06HI FN9233S1R-12-06HI 120.310.270.12.21000
FN9233-1-06 FN9233-1-06 10.3122.50.12.2
FN9233-3-06 FN9233-3-06 30.314.60.12.2
FN9233-6-06 FN9233-6-06 60.311.60.12.2
FN9233-8-06 FN9233-8-06 80.310.90.12.2
FN9233-10-06 FN9233-10-06 100.310.450.12.2
FN9233-12-06 FN9233-12-06 120.310.270.12.2
FN9233-15-06 FN9233-15-06 150.310.20.12.2
FN9233-12-06HI FN9233-12-06HI 120.310.270.12.2
FN9233-15-06HI FN9233-15-06HI 150.310.20.12.2
FN9233B-1-06 FN9233B-1-06 1022.50.11000
FN9233B-3-06 FN9233B-3-06 304.60.11000
FN9233S1B-1-06 FN9233S1B-1-06 1022.50.11000
FN9233B-8-06 FN9233B-8-06 800.90.11000
FN9233B-10-06 FN9233B-10-06 1000.450.11000
FN9233B-12-06 FN9233B-12-06 1200.270.11000
FN9233B-15-06 FN9233B-15-06 1500.20.11000
FN9233B-12-06HI FN9233B-12-06HI 1200.270.11000
FN9233B-15-06HI FN9233B-15-06HI 1500.20.11000
FN9233R-1-06 FN9233R-1-06 10.3122.50.12.21000
FN9233R-3-06 FN9233R-3-06 30.314.60.12.21000
FN9233R-6-06 FN9233R-6-06 60.311.60.12.21000
FN9233R-8-06 FN9233R-8-06 80.310.90.12.21000
FN9233R-10-06 FN9233R-10-06 100.310.450.12.21000
FN9233UB-3-06 FN9233UB-3-06 304.60.11000
FN9233U-10-06 FN9233U-10-06 100.310.450.12.2
FN9233U-12-06 FN9233U-12-06 120.310.270.12.2
FN9233U-15-06 FN9233U-15-06 150.310.20.12.2
FN9233U-12-06HI FN9233U-12-06HI 120.310.270.10.12.2
FN9233U-15-06HI FN9233U-15-06HI 150.310.20.10.12.2
FN9233UF2-1-06 FN9233UF2-1-06 10.4722.50.0470.0473.3
FN9233UF2-3-06 FN9233UF2-3-06 30.474.60.0470.0473.3
FN9233UF2-6-06 FN9233UF2-6-06 60.471.60.0470.0473.3
FN9233UF2-8-06 FN9233UF2-8-06 80.470.90.0470.0473.3
FN9233UF2-10-06 FN9233UF2-10-06 100.470.450.0470.0473.3
FN9233UF2-12-06 FN9233UF2-12-06 120.470.270.0470.0473.3
FN9233UF2-15-06 FN9233UF2-15-06 150.310.20.0470.0473.3
FN9233U-8-06 FN9233U-8-06 80.310.90.12.2
FN9233UB-6-06 FN9233UB-6-06 601.60.11000
FN9233UB-1-06 FN9233UB-1-06 1022.50.11000
FN9233UB-8-06 FN9233UB-8-06 800.90.11000
FN9233UB-10-06 FN9233UB-10-06 1000.450.11000
FN9233UB-12-06 FN9233UB-12-06 1200.270.11000
FN9233UB-15-06 FN9233UB-15-06 1500.20.11000
FN9233SF2-10-06 FN9233SF2-10-06 100.470.450.12.2
FN9233S1F2-10-06 FN9233S1F2-10-06 100.470.450.12.2
FN9233S-1-06-20 FN9233S-1-06-20 10.3122.50.12.2
FN9233S-3-06-20 FN9233S-3-06-20 30.314.60.12.2
FN9233SR-3-06-20 FN9233SR-3-06-20 30.314.60.12.21000
FN9233SR-12-06 FN9233SR-12-06 120.310.270.12.21000
FN9233S1B-3-06 FN9233S1B-3-06 304.60.11000
FN9233S1B-6-06 FN9233S1B-6-06 601.60.11000
FN9233S1B-8-06 FN9233S1B-8-06 800.90.11000
FN9233S1B-10-06 FN9233S1B-10-06 1000.450.11000
FN9233S1B-12-06 FN9233S1B-12-06 1200.270.11000
FN9233S1B-15-06 FN9233S1B-15-06 1500.20.11000
FN9233SR-1-06 FN9233SR-1-06 10.3122.50.12.21000
FN9233SR-3-06 FN9233SR-3-06 30.314.60.12.21000
FN9233SR-6-06 FN9233SR-6-06 60.311.60.12.21000
FN9233SR-8-06 FN9233SR-8-06 80.310.90.12.21000
FN9233SR-10-06 FN9233SR-10-06 100.310.450.12.21000
FN9233S-10-06-20 FN9233S-10-06-20 100.310.450.12.2
FN9233SR-15-06 FN9233SR-15-06 150.310.20.12.21000
FN9233S1R-1-06 FN9233S1R-1-06 10.3122.50.12.21000
FN9233S1R-3-06 FN9233S1R-3-06 30.314.60.12.21000
FN9233S1R-6-06 FN9233S1R-6-06 60.311.60.12.21000
FN9233S1R-8-06 FN9233S1R-8-06 80.310.90.12.21000
FN9233S1R-10-06 FN9233S1R-10-06 100.310.450.12.21000
FN9233S1R-12-06 FN9233S1R-12-06 120.310.270.12.21000
FN9233S1R-15-06 FN9233S1R-15-06 150.310.20.12.21000
FN9233U-1-06 FN9233U-1-06 10.3122.50.12.2
FN9233U-3-06 FN9233U-3-06 30.314.60.12.2
FN9233U-6-06 FN9233U-6-06 60.311.60.12.2

Features and Benefits

Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
Rear/front or snap-in mounting
Optional earth line choke see FN 9233 E data sheet
FN 9233 B versions comply with the requirements of 1MOP acc. to IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
Wide mounting flanges available
Different output connections offering maximum flexibility for assembly
Custom-specific versions are available on request

Typical Applications

Portable electrical and electronic equipment
Small to medium-sized machines and household equipment
Single-phase power supplies, switch-mode power supplies
Test and measurement equipment
Medical equipment
Rack mounting equipment

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Nominal operating voltage

230 VAC

Rated currents

1 to 15 A @ 50°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec (standard types)

P –> PE 2500 VAC for 2 sec (B types)

P –> N 1000 VAC for 2 sec

Temperature range (operation and storage)

-25°C to +85°C (25/85/21)

Protection category

IP 40 according to IEC 60529

Flammability corresponding to

Plastic material: UL 94 V0

Approvals by rated current

1 to 10 A (ENEC, CQC)

1 to 15 A (UL, CSA)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF (Mil-HB-217F)

>2,540,000 h @ 50°C/230 V

Typical electrical schematic

FN9233

Approvals & Compliances

UL Recognized Label
CSA Label
ENEC 14 Label
CQC Label
RoHS Label
CE Label
UKCA Label

(CQC except HI-types)
