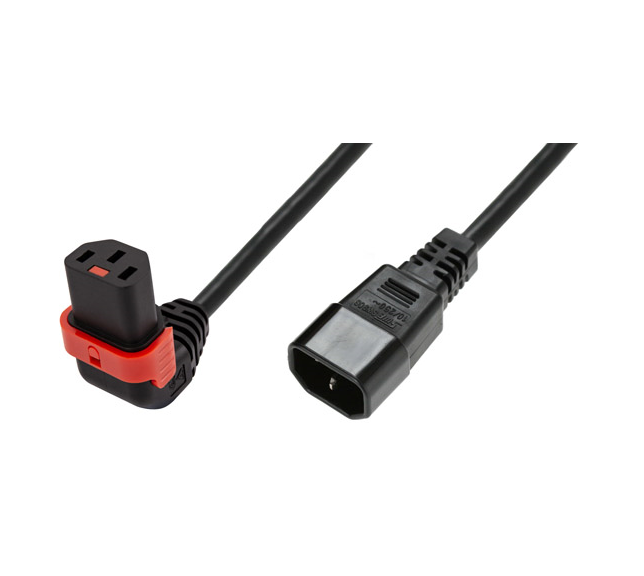

Power Cord with angled Locking System C13
- Protects appliances that are vulnerable to vibration
- Connector cannot be accidentally pulled or vibrated out of the inlet
- Space availability/constraints
- Different angles for ease of access
- Space saving
- Release locking mechanism
- Prevents accidental disconnection
Technical Specifications
Maximum continuous operating voltage
250 VAC, 50/60 Hz
Nominal operating voltage
230 VAC
Rated currents
10 A for C13 plug
High potential test voltage
P–> PE 2000 VAC (1 min 50 Hz)
P –> N 2000 VAC (1 min 50 Hz)
Temperature range (operation and storage)
-25°C to +70°C
Protection category
IP 20 according IEC 60529
Flammability corresponding to
Plugs: UL 94 V-2 or better
Cable: IEC 60332-1 Cat. F2
Connector (load side)
IEC C13 according to IEC/EN 60320-2-2 with IEC Lock UL 498, CSA C22.2 no. 42, Protection Class I
Connector (line side) and cables
Please refer to Available combinations IL 13 table
