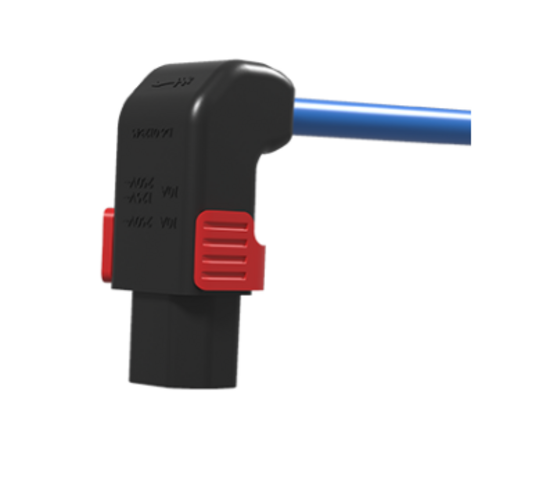

IL 13P IEC C13 Rewireable Angled Connectors with Locking System
- Protects appliances that are vulnerable to vibration
- Connector cannot be accidentally pulled or vibrated out of the inlet
- Space availability/constraints
- Different angles for ease of access
- Space saving
- Release locking mechanism
- Prevents accidental disconnection
Features and Benefits
Reliable and durable locking mechanism
Order Codes
Angled Version (this datasheet)
Up/down angled rewireable connector: 820893
Left/right angled rewireable connector: 820892 Straight Version (different datasheet)
Rewireable connector not PSE approved: 815763
Rewireable connector PSE approved: 816590Technical Specifications
Maximum continuous operating voltage
250 VAC, 50/60 Hz
Nominal operating voltage
230 VAC
High potential test voltage
P–> PE 2000 VAC (1min 50 Hz)
P –> N 2000 VAC (1min 50 Hz)
Temperature range (operation and storage)
-25 °C to +70 °C
Protection category
IP20 according IEC 60529
Approvals by rated current
1 to 10 A (ENEC)
1 to 15 A (UL, CSA)
Approvals & Compliances
