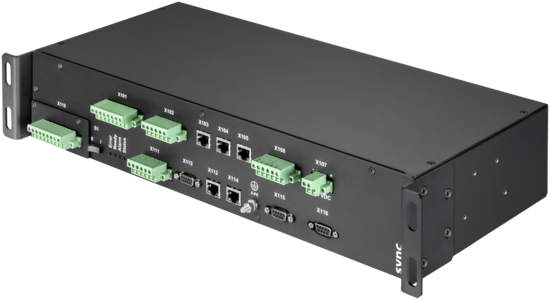

Sync Module SYNC300A

Sync Module for Ecosine Active Sync

SYNC300A

Sync Module for Ecosine Active Sync

SYNC300A

The Sync Module SYNC300A stands as the master communication module for Ecosine Active Sync Active Harmonic Filter.

This optional accessory improves installation and functionalities of the system.

The usage of a Sync Module is greatly recommended for Ecosine Active Sync starting from 180A and above and already working starting with one Power Module FN3530 or FN3540.

Allow the interconnection of multiple cabinets to act as a single Active Harmonic Filter with up to 1200A of mitigation current.



Highlights

  • Flexible installation with current transformers on mains or load side; one simple CT connection point for all modules.
  • Intelligent load and energy management with standby control and additional Digital I/O.
  • Simple and modular installation (wall-mount or rack-mount); recommended for 180 A and more.
  • Easy filter scalability and extension of mitigation current beyond 300 A; one sync module can connect and coordinate up to 5 power modules (5x60 A) in parallel; higher mitigation current rates are possible by paralleling the sync modules, e.g. for 480 A active harmonic filter, 2 sync modules and 8 power modules are required.
  • Available as part of the Ecosine Active Sync cabinet or as an option for later upgrade.

Features and Benefits

Digital I/O












2 DI, 2DO, 4 DI/O (programmable)
2 Relays NO, 2 relays NC (250 VAC / 3A)
2 relays NO with common COM (250 VAC / 3A)


CT configuration












Closed loop
Open loop


Standby control












Hot standby
Cold standby
Reduce losses
Increase lifetime
Equalizing operational hours
Redundancy

Typical Applications

Building technology
Automation industry
Data centers
Elevators
Cement industry
HVAC installations
Battery charges
Oil and gas exploration
Paper mills
Ship propulsion
Steel industry
Tunnel ventilation
UPS
Water/wastewater treatment
Welding equipment
Wind turbines
Machines and Automation

Approvals & Compliances

CE Label
RoHS Label
UKCA Label
