| General | |
|---|---|
| Voltage AC () | 250 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 10 |
| Ambient temperature () | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation

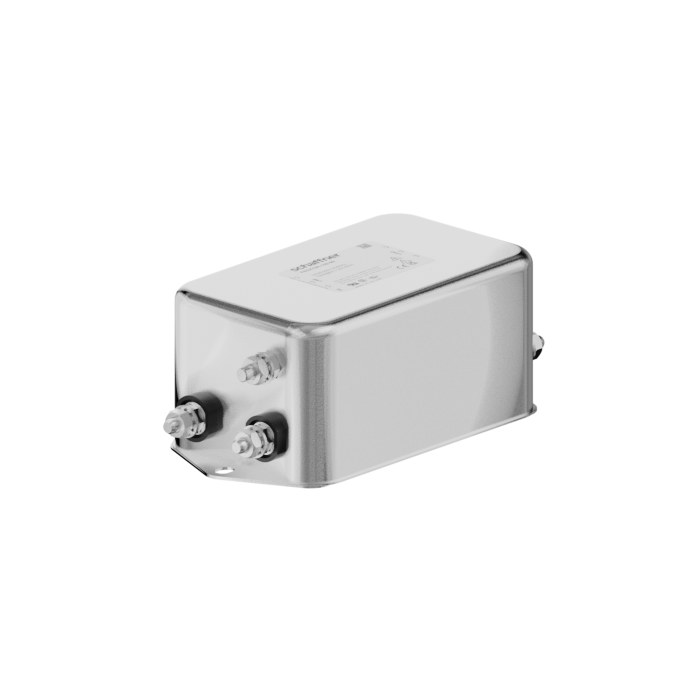

FN2090Z-10-08
SAP Number
821034
Product Family
FN2090
Description
10 A EMC filter with screw terminals
Type
Chassis mount
Application
General
Phases
1 Phase
| Electric | |
|---|---|
| Leakage current IEC60939 () | 0.61 |
| Input terminal | Threaded stud |
| Power Loss () | 8.4 |
| Resistance () | 330 |
| Attenuation | |
|---|---|
| Inductance L1 () | 8 |
| Capacitance Cx1 () | 0.47 |
| Capacitance Cy1 () | 3.3 |
| Capacitance Cy2 () | 1 |
| CM attenuation @ 150kHz () | 59 |
| DM attenuation @ 150kHz () | 63 |
| Mechanic | |
|---|---|
| Length () | 113.5 |
| Width () | 57.5 |
| Height () | 45.5 |
| Volume () | 297 |
| Weight () | 481 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 113.5 |
| B (mm) | 57.5 |
| C (mm) | 45.4 |
| D (mm) | 94 |
| E (mm) | 56 |
| F (mm) | 103 |
| G (mm) | 25 |
| H (mm) | 12.4 |
| I (mm) | 32.4 |
| J (mm) | 15.5 |
| K (mm) | 4.4 |
| L (mm) | 6 |
| M (mm) | 1 |
| M (mm) | M4 |
| O (mm) | 8.4 |
| P (mm) | 18 |
