| General | |
|---|---|
| Voltage AC () | 1000 |
| Nominal Frequency () | DC |
| Rated Current @ambient () | 400 |
| Ambient temperature () | 50 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2211-400-99-C30-R55
SAP Number
814981
Product Family
FN2211 and FN2210
Description

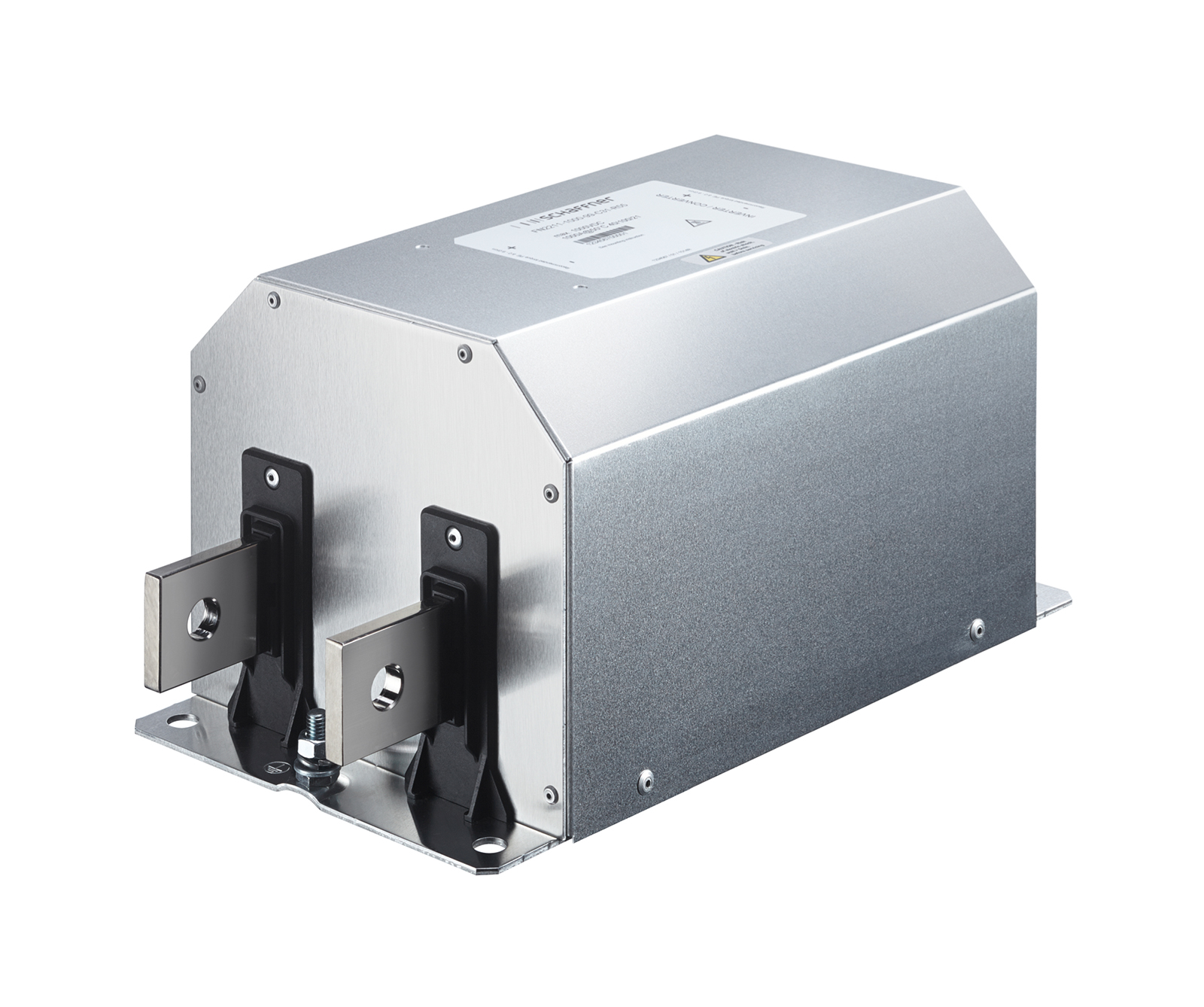

400 A EMC filter with bus bars
Type
Chassis mount
Phases
DC
| Electric | |
|---|---|
| Input terminal | Bus bar |
| Output terminal | Threaded stud |
| Power Loss () | 24 |
| Attenuation | |
|---|---|
| CM attenuation @ 150kHz () | 58 |
| DM attenuation @ 150kHz () | 16 |
| Mechanic | |
|---|---|
| Length () | 310 |
| Width () | 175 |
| Height () | 150 |
| Volume () | 8138 |
| Weight () | 3860 |
Schaffner schemes
| Dimensions | |
|---|---|
| A (mm) () | 215 |
| B (mm) | 160 |
| C (mm) | 100 |
| D (mm) | 290 |
| E (mm) | 240 |
| F (mm) | 125, 130 |
| G (mm) | Ø 9 |
| H (mm) | 2 |
| J (mm) | M8 |
| K (mm) | 245 (+/- 1) |
| L (mm) | 265 |
| P (mm) | 71 (+/- 0.5) |
| U (mm) | 46 |
| V (mm) | 25 |
| W (mm) | 4 |
| X (mm) | 12.5 |
| Y (mm) | 37.5 |
| Z (mm) | Ø 11 |
