Product Overview
Compact high current DC EMC/RFI filter
- Reduces conducted emissions towards the solar panel
- Reduces the probability of EMI radiation off the solar panel
- Helps to prevent premature panel aging
- Helps to meet international EMC regulations
- Most compact standard solution in the industry
- FN2210 without Cy capacitors to ground
Articles
| Article | Rated Current @ambient | Power Loss | Input/Output connections (Nm) | Distribution stock | Compare | Read More | ||
|---|---|---|---|---|---|---|---|---|
| Input terminal | Output terminal | |||||||
| FN2210-250-99-R5 | 250 | Bus bar | Threaded stud | ||||
| FN2210-400-99-R5 | 400 | Bus bar | Threaded stud | ||||
| FN2210-600-99-R5 | 600 | Bus bar | Threaded stud | ||||
| FN2210-1000-99-R5 | 1000 | Bus bar | Threaded stud | ||||
| FN2210-1500-99-R5 | 1500 | Bus bar | Threaded stud | ||||
| FN2210-2300-99-R5 | 2300 | Bus bar | Threaded stud | ||||
| FN2211-250-99-C30-R55 | 250 | Bus bar | Threaded stud | ||||
| FN2211-400-99-C20-R99 | 400 | 24 | Bus bar | Threaded stud | |||
| FN2211-400-99-C30-R55 | 400 | 24 | Bus bar | Threaded stud | |||
| FN2211-600-99-C22-R66 | 600 | Bus bar | Threaded stud | ||||
| FN2211-600-99-C30-R55 | 600 | Bus bar | Threaded stud | ||||
| FN2211-1000-99-C30-R55 | 1000 | Bus bar | Threaded stud | ||||
| FN2211-1500-99-C30-R55 | 1500 | Bus bar | Threaded stud | ||||
| FN2211-2300-99-C30-R55 | 2300 | Bus bar | Threaded stud | ||||
Features and Benefits
Installed between the PV inverter and the solar panel, the FN2211 and FN2210 DC filters are used to influence positively the conducted emissions on the panel side of the system. Therefore the DC filters significantly reduce the potential for highfrequency (HF) interference radiation of the panel. The filter also helps to prevent premature panel aging because of HF stray and leakage currents.
Typical Applications
The FN2211/FN2210 series are primarily designed for PV inverter applications between 250 and 2'300 A. However, they can potentially also be applied in other DC applications within published specifications, like UPS, DC motor drives, energy/battery storage systems, or DC charger installations.
Technical Specifications
Maximum continuous operating voltage
1000 VDC
Rated currents
250 to 2300 A @ 50°C
Overload capability
4x rated current at switch on, max. 8 sec
1.5x rated current for 1 minute, once per hour
High potential test voltage
P -> E 4800 VDC for 2 sec
P -> P 3600 VDC for 2 sec
Temperature range (operation and storage)
-40°C to +100°C
Climatic category
40/100/21 acc. to IEC 60068-1
Protection category
IP 00
Flammability corresponding to
UL 94V-0
Design corresponding to
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939, EN 60721-3, EN 62109
MTBF (Mil-HB-217F)
>200,000 h @ 50°C/1000 V
Terminals/Housing
Ni plated cu bars/Metal

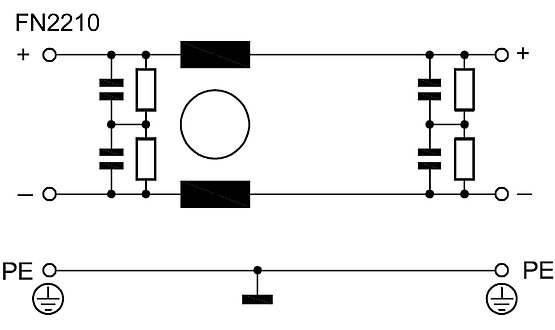

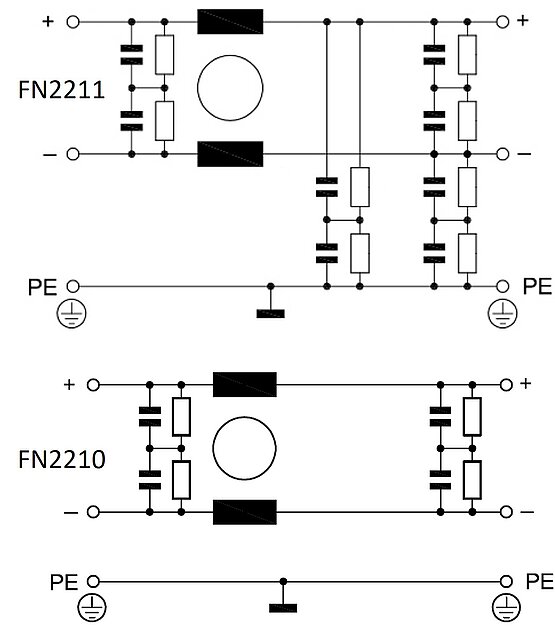

Typical electrical schematic
