| General | |
|---|---|
| Voltage AC () | 277 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 25 |
| Ambient temperature () | 50 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2520-25-103-C1111
SAP Number
821827
Product Family
FN2520
Description

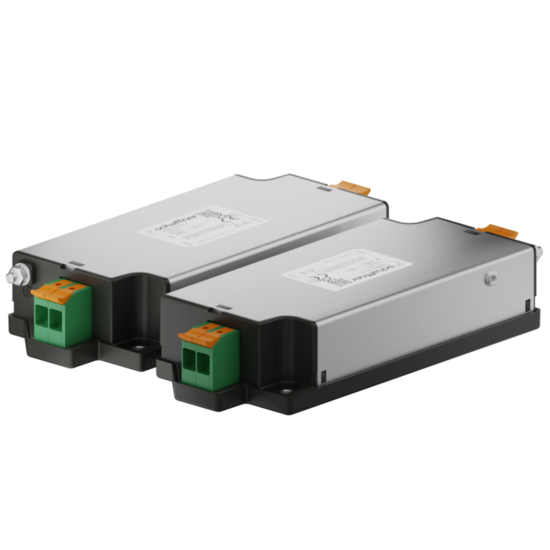

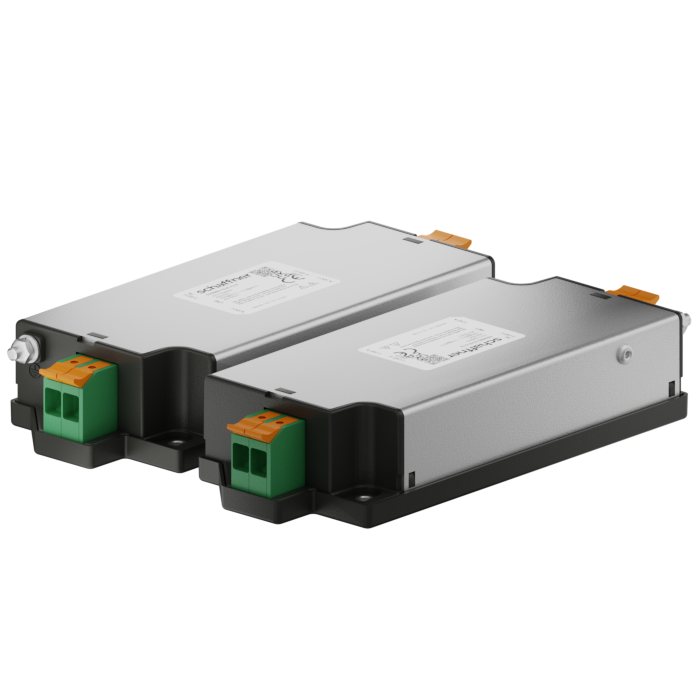

25 A EMC filter with push-in terminals
Type
Chassis mount
Phases
1 Phase
| Electric | |
|---|---|
| Leakage current IEC60939 () | 0.82 |
| Power Loss () | 11 |
| Resistance () | 680 |
| Attenuation | |
|---|---|
| Inductance L1 () | 1.5 |
| Inductance L2 () | 1.5 |
| Capacitance Cx1 () | 1 |
| Capacitance Cx2 () | 0.47 |
| Capacitance Cy1 () | 4.7 |
| Capacitance Cy2 () | 4.7 |
| CM attenuation @ 150kHz () | 46 |
| DM attenuation @ 150kHz () | 39 |
| Mechanic | |
|---|---|
| Length () | 149.4 |
| Width () | 73 |
| Height () | 35 |
| Volume () | 382 |
| Weight () | 521 |
Schaffner schemes
Mechanical Data Image
| Dimensions |
|---|
