IEC Inlet Filters FN9222E

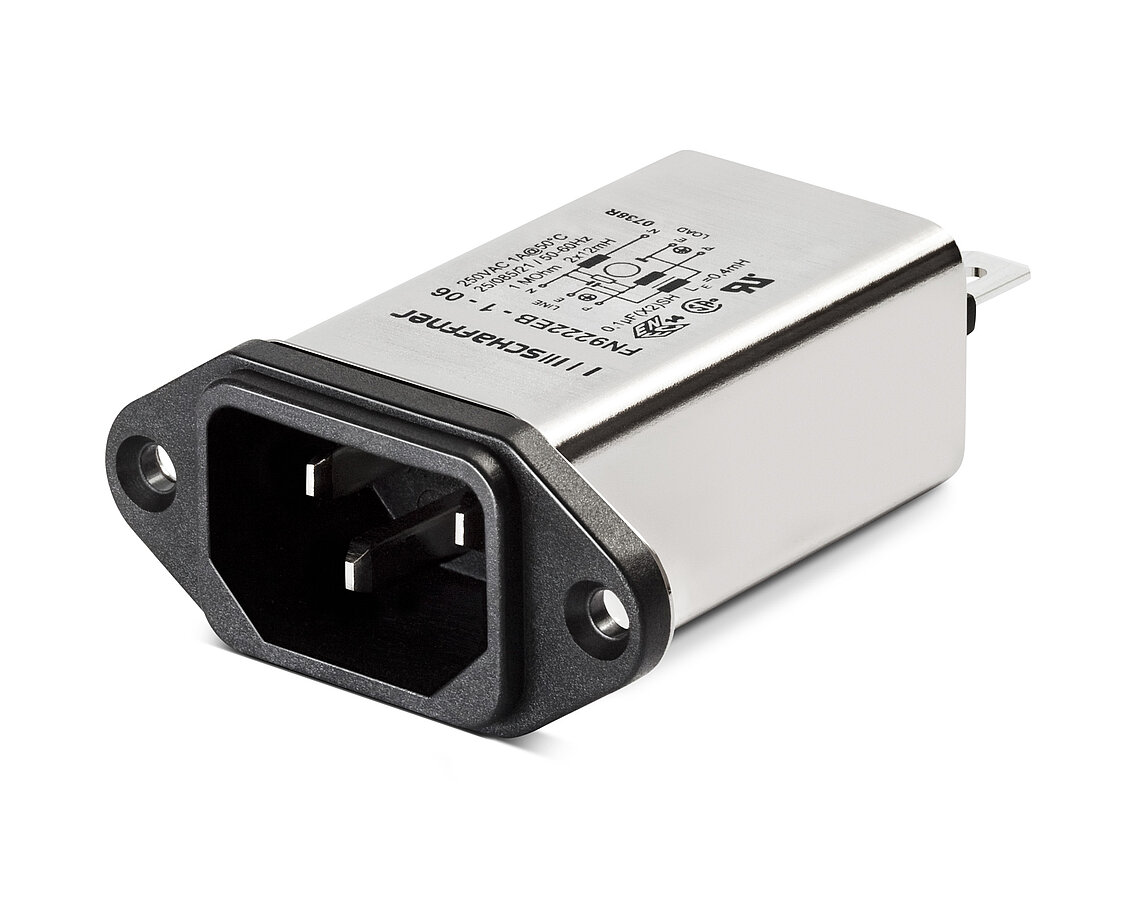

General Performance EMC/RFI Filter with Earth Line Choke

FN9222E

General Performance EMC/RFI Filter with Earth Line Choke

  • Rated currents up to 15 A
  • Excellent performance/size ratio
  • Integrated earth line choke
  • Complies with IEC/EN 60601-1
  • Snap-in versions (S and S1 type)
  • Optional wide mounting flanges

Articles

Article Rated Current @ambient Leakage current IEC60939 Inductance Capacitance Resistance Distribution stock Compare Read More
L1 L2 Cx1 (µF) Cy1 (nF)
FN9222ES1R-6-06 FN9222ES1R-6-06 60.310.780.40.12.21000
FN9222ESB-6-06 FN9222ESB-6-06 600.780.40.12.21000
FN9222ESB-3-06 FN9222ESB-3-06 302.50.40.12.21000
FN9222ESB-15-06 FN9222ESB-15-06 1500.0750.10.12.21000
FN9222ESB-12-06 FN9222ESB-12-06 1200.110.10.12.21000
FN9222ESB-1-06 FN9222ESB-1-06 10120.40.12.21000
FN9222ESB-10-06 FN9222ESB-10-06 1000.2250.10.12.21000
FN9222ES-8-06 FN9222ES-8-06 80.310.50.40.12.2
FN9222ES-6-06 FN9222ES-6-06 60.310.780.40.12.2
FN9222ES-3-06 FN9222ES-3-06 30.312.50.40.12.2
FN9222ES1R-8-06 FN9222ES1R-8-06 80.310.50.40.12.21000
FN9222ESB-8-06 FN9222ESB-8-06 800.50.40.12.21000
FN9222ES1R-3-06 FN9222ES1R-3-06 30.312.50.40.12.21000
FN9222ES1R-15-06 FN9222ES1R-15-06 150.310.0750.10.12.21000
FN9222ES1R-12-06 FN9222ES1R-12-06 120.310.110.10.12.21000
FN9222ES1R-1-06 FN9222ES1R-1-06 10.31120.40.12.21000
FN9222ES1R-10-06 FN9222ES1R-10-06 100.310.2250.10.12.21000
FN9222ES1B-8-06 FN9222ES1B-8-06 800.50.40.11000
FN9222ES1B-6-06 FN9222ES1B-6-06 600.780.40.11000
FN9222ES1B-3-06 FN9222ES1B-3-06 302.50.40.11000
FN9222ES1B-15-06 FN9222ES1B-15-06 1500.0750.10.11000
FN9222EU-12-06 FN9222EU-12-06 120.310.110.10.12.2
FN9222EUB-6-06 FN9222EUB-6-06 600.780.40.12.21000
FN9222EUB-3-06 FN9222EUB-3-06 302.50.40.12.21000
FN9222EUB-10-06 FN9222EUB-10-06 1000.2250.10.12.21000
FN9222EU-8-06 FN9222EU-8-06 80.310.50.40.12.2
FN9222EU-6-06 FN9222EU-6-06 60.310.780.40.12.2
FN9222EU-3-06 FN9222EU-3-06 30.312.50.40.12.2
FN9222EU-15-06HI FN9222EU-15-06HI 150.310.0750.10.12.2
FN9222EU-15-06 FN9222EU-15-06 150.310.0750.10.12.2
FN9222EU-12-06HI FN9222EU-12-06HI 120.310.110.10.12.2
FN9222ES1B-12-06 FN9222ES1B-12-06 1200.110.10.11000
FN9222EU-1-06 FN9222EU-1-06 10.31120.40.12.2
FN9222EU-10-06 FN9222EU-10-06 100.310.2250.10.12.2
FN9222ESR-8-06 FN9222ESR-8-06 80.310.50.40.12.21000
FN9222ESR-6-06 FN9222ESR-6-06 60.310.780.40.12.21000
FN9222ESR-3-06 FN9222ESR-3-06 30.312.50.40.12.21000
FN9222ESR-15-06 FN9222ESR-15-06 150.310.0750.10.12.21000
FN9222ESR-12-06 FN9222ESR-12-06 120.310.110.10.12.21000
FN9222ESR-1-06 FN9222ESR-1-06 10.31120.40.12.21000
FN9222ESR-10-06 FN9222ESR-10-06 100.310.2250.10.12.21000
FN9222EB-1-06 FN9222EB-1-06 10120.40.12.21000
FN9222ER-1-06 FN9222ER-1-06 10.31120.40.12.21000
FN9222ER-10-06 FN9222ER-10-06 100.310.2250.10.12.21000
FN9222EB-8-06 FN9222EB-8-06 800.50.40.12.21000
FN9222EB-6-06 FN9222EB-6-06 600.780.40.12.21000
FN9222EB-3-06 FN9222EB-3-06 302.50.40.12.21000
FN9222EB-15-06HI FN9222EB-15-06HI 1500.0750.10.12.21000
FN9222EB-15-06 FN9222EB-15-06 1500.0750.10.12.21000
FN9222EB-12-06HI FN9222EB-12-06HI 1200.110.10.12.21000
FN9222EB-12-06 FN9222EB-12-06 1200.110.10.12.21000
FN9222ER-12-06 FN9222ER-12-06 120.310.110.10.12.21000
FN9222EB-10-06 FN9222EB-10-06 1000.2250.10.12.21000
FN9222E-8-06 FN9222E-8-06 80.310.50.12.21000
FN9222E-6-06 FN9222E-6-06 60.310.780.12.21000
FN9222E-3-06 FN9222E-3-06 30.312.50.12.21000
FN9222E-15-06HI FN9222E-15-06HI 150.310.0750.12.21000
FN9222E-15-06 FN9222E-15-06 150.310.0750.12.21000
FN9222E-12-06HI FN9222E-12-06HI 120.310.110.12.21000
FN9222E-12-06 FN9222E-12-06 120.310.110.12.21000
FN9222E-1-06 FN9222E-1-06 10.31120.12.21000
FN9222ES1-1-06 FN9222ES1-1-06 10.31120.40.12.2
FN9222ES1B-1-06 FN9222ES1B-1-06 10120.40.11000
FN9222ES1B-10-06 FN9222ES1B-10-06 1000.2250.10.11000
FN9222ES1-8-06 FN9222ES1-8-06 80.310.50.40.12.2
FN9222ES1-6-06 FN9222ES1-6-06 60.310.780.40.12.2
FN9222ES-15-06 FN9222ES-15-06 150.310.0750.10.12.2
FN9222ES1-3-06 FN9222ES1-3-06 30.312.50.40.12.2
FN9222ES-12-06 FN9222ES-12-06 120.310.110.10.12.2
FN9222ES1-15-06 FN9222ES1-15-06 150.310.0750.10.12.2
FN9222ES1-12-06 FN9222ES1-12-06 120.310.110.10.12.2
FN9222E-10-06 FN9222E-10-06 100.310.2250.12.21000
FN9222ES1-10-06 FN9222ES1-10-06 100.310.2250.10.12.2
FN9222ES-1-06 FN9222ES-1-06 10.31120.40.12.2
FN9222ES-10-06 FN9222ES-10-06 100.310.2250.10.12.2
FN9222ER-8-06 FN9222ER-8-06 80.310.50.40.12.21000
FN9222ER-6-06 FN9222ER-6-06 60.310.780.40.12.21000
FN9222ER-3-06 FN9222ER-3-06 30.312.50.40.12.21000
FN9222ER-15-06HI FN9222ER-15-06HI 150.310.0750.10.12.21000
FN9222ER-15-06 FN9222ER-15-06 150.310.0750.10.12.21000
FN9222ER-12-06HI FN9222ER-12-06HI 150.310.110.10.12.21000

Features and Benefits

Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
Rear/front or snap-in mounting
FN 9222 B versions comply with the requirements of 1MOP acc. to IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
Wide mounting flanges available
Different output connections offering maximum flexibility for assembly
Without earth line choke see FN 9222 data sheet
Custom-specific versions are available on request

Typical Applications

Portable electrical and electronic equipment
Small to medium-sized machines and household equipment
Single-phase power supplies, switch-mode power supplies
Test and measurement equipment
Medical equipment
Rack mounting equipment

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Nominal operating voltage

230 VAC

Rated currents

1 to 15 A @ 50°C

Operating frequency

dc to 400 Hz

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec (standard types)

P –> PE 2500 VAC for 2 sec (B types)

P –> N 1000 VAC for 2 sec

Temperature range (operation and storage)

-25°C to +85°C (25/85/21)

Protection category

IP 40 according to IEC 60529

Flammability corresponding to

Plastic Material: UL 94 V-0

Laces for -07 version: UL 94 VW-1

Approvals by rated current

1 to 10 A (ENEC, CQC)

1 to 15 A (UL, CSA)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF (Mil-HB-217F)

>1,610,000 h @ 50°C/230 V

Typical electrical schematic
